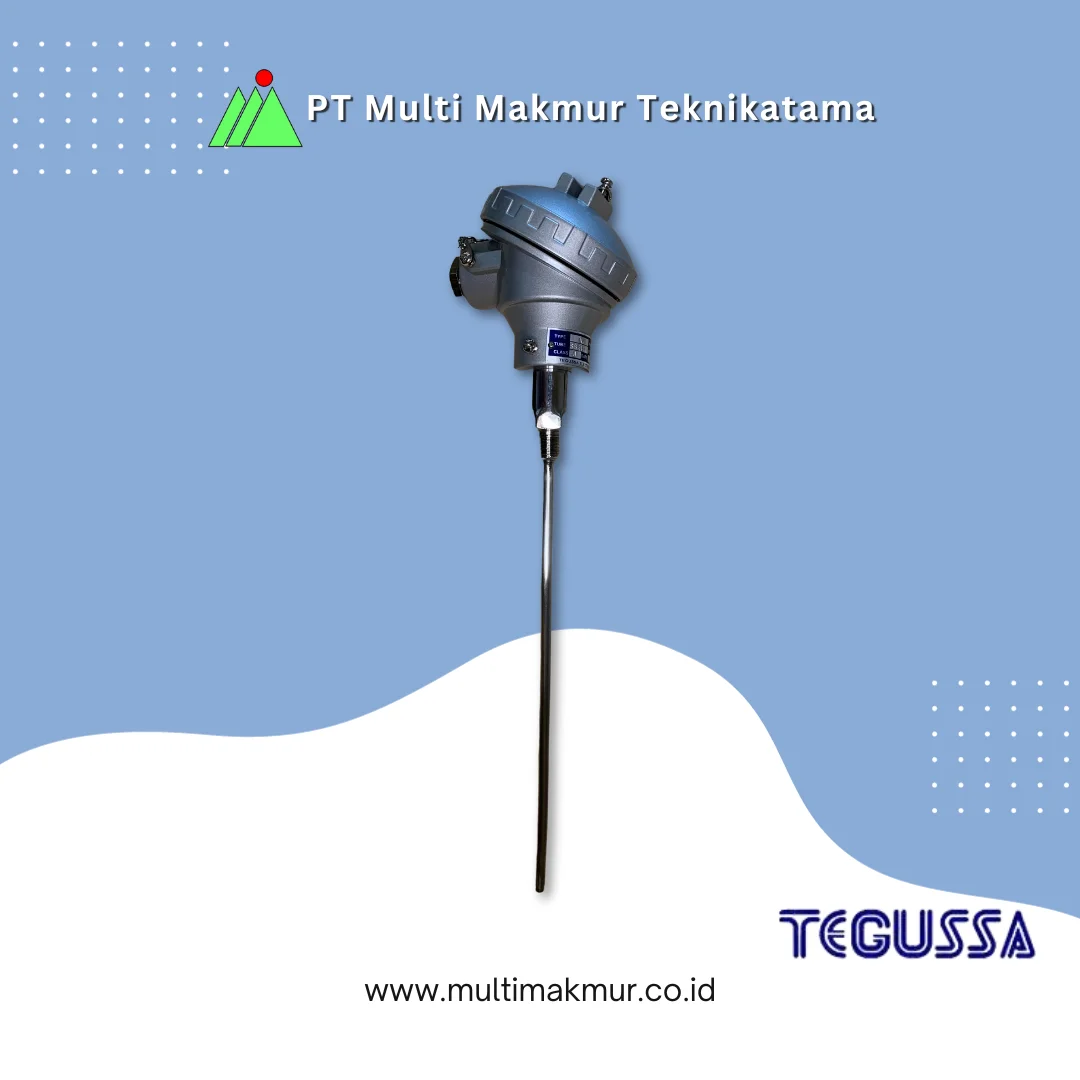

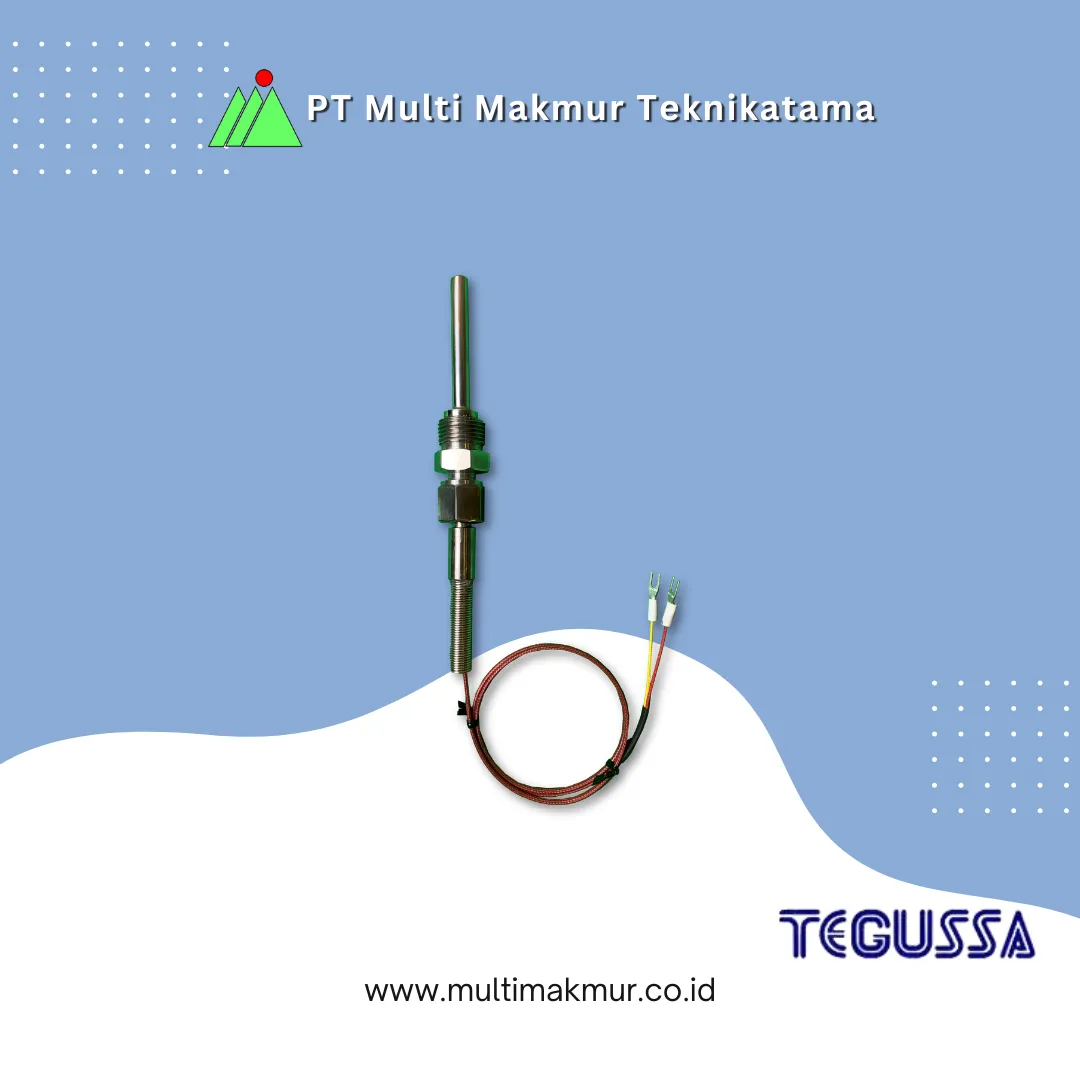

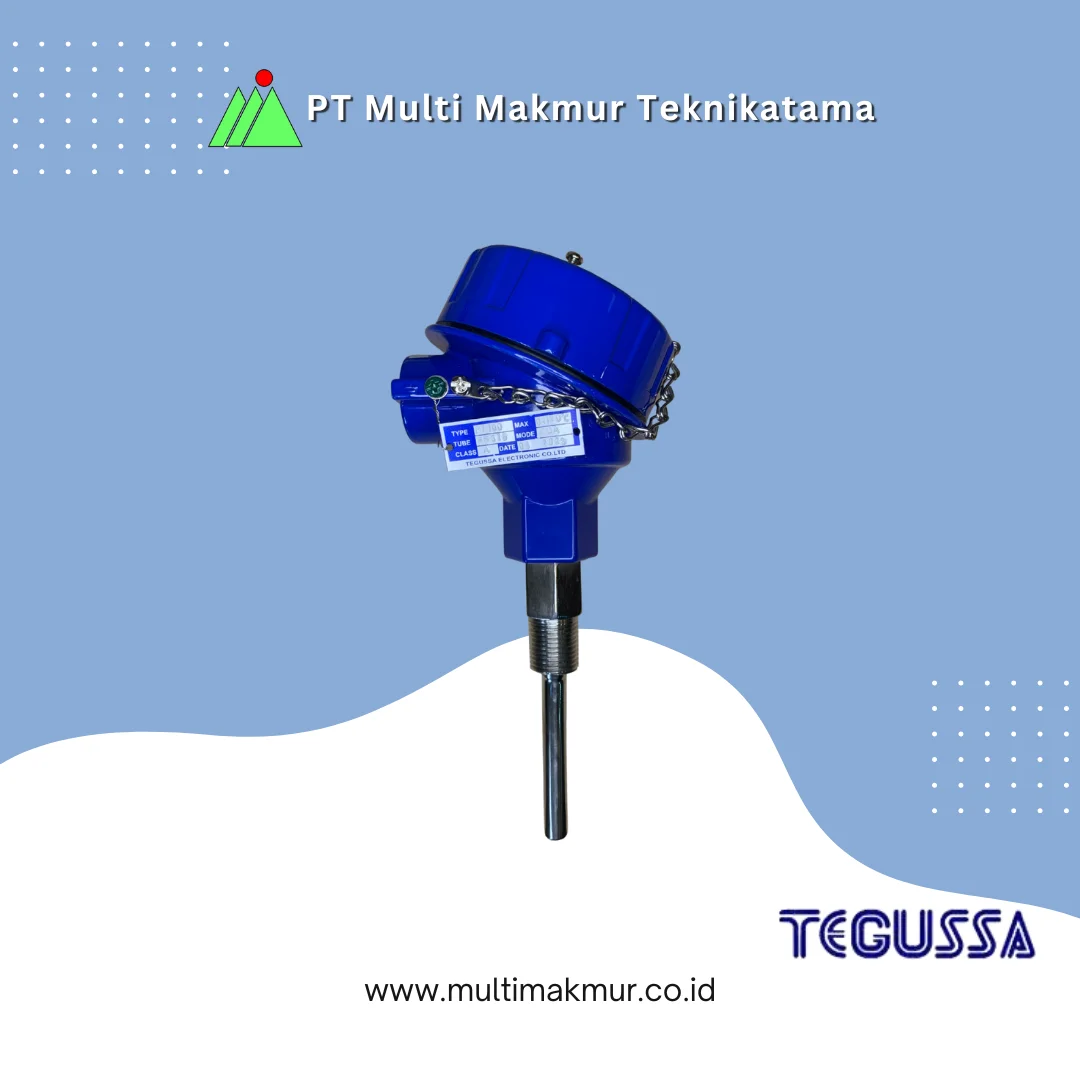

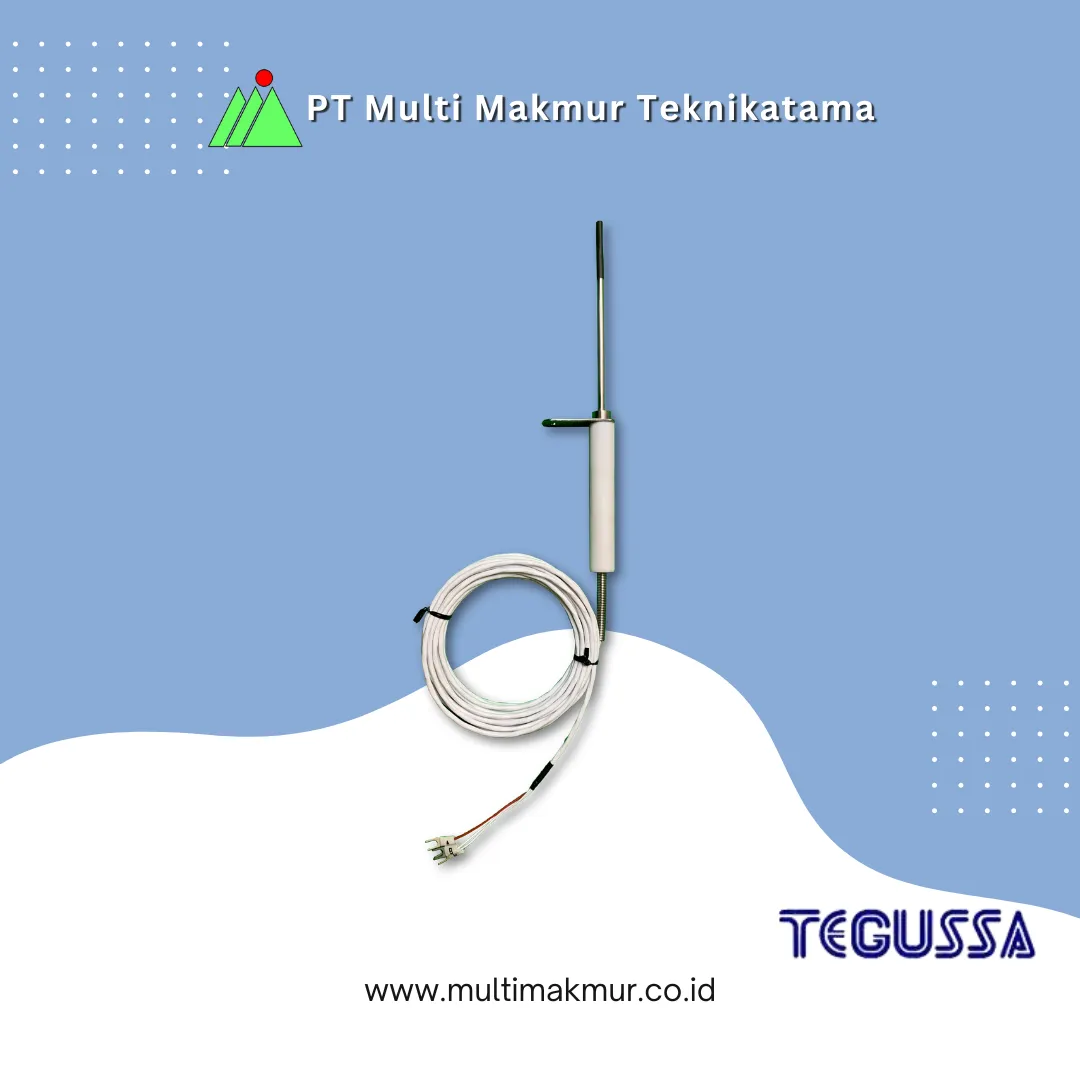

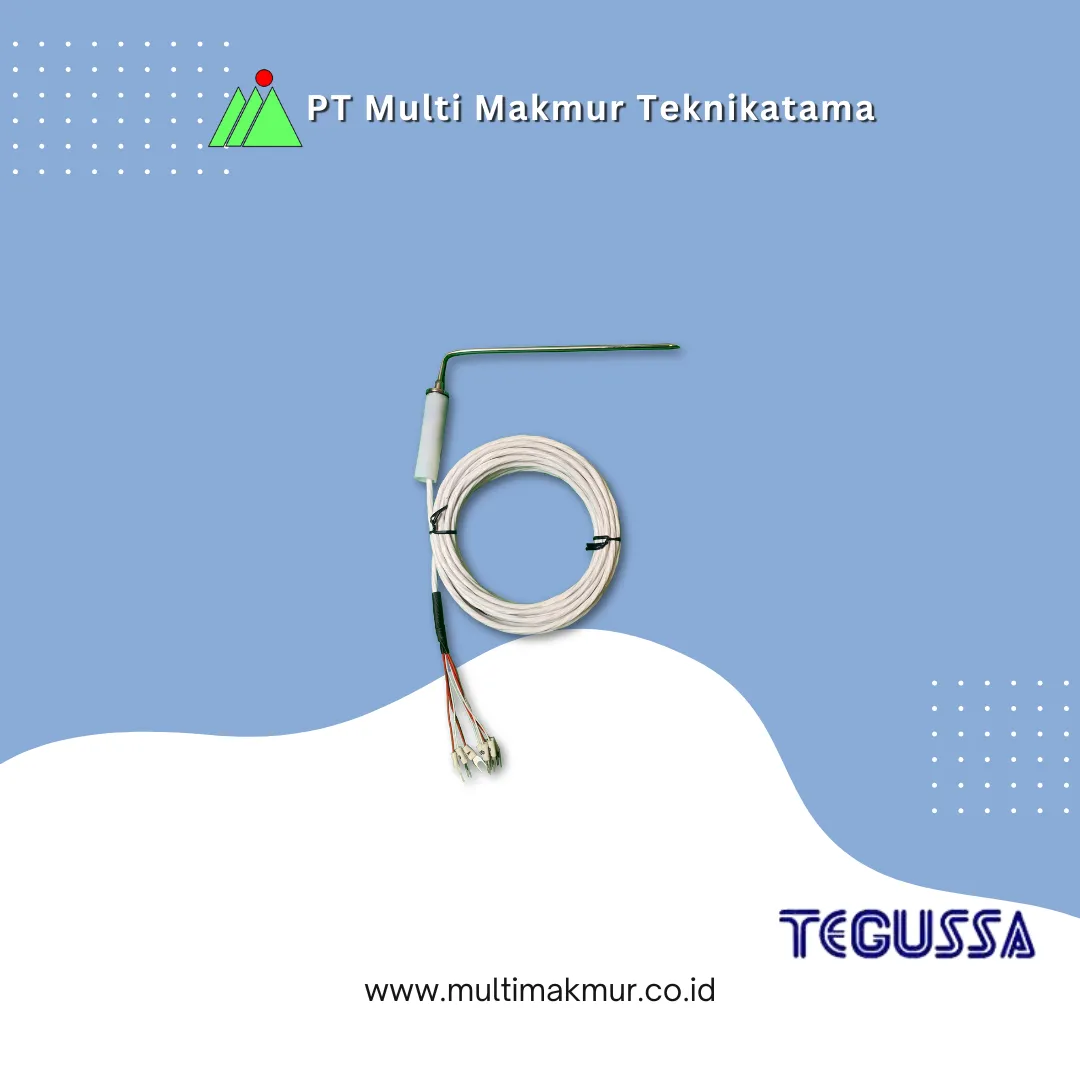

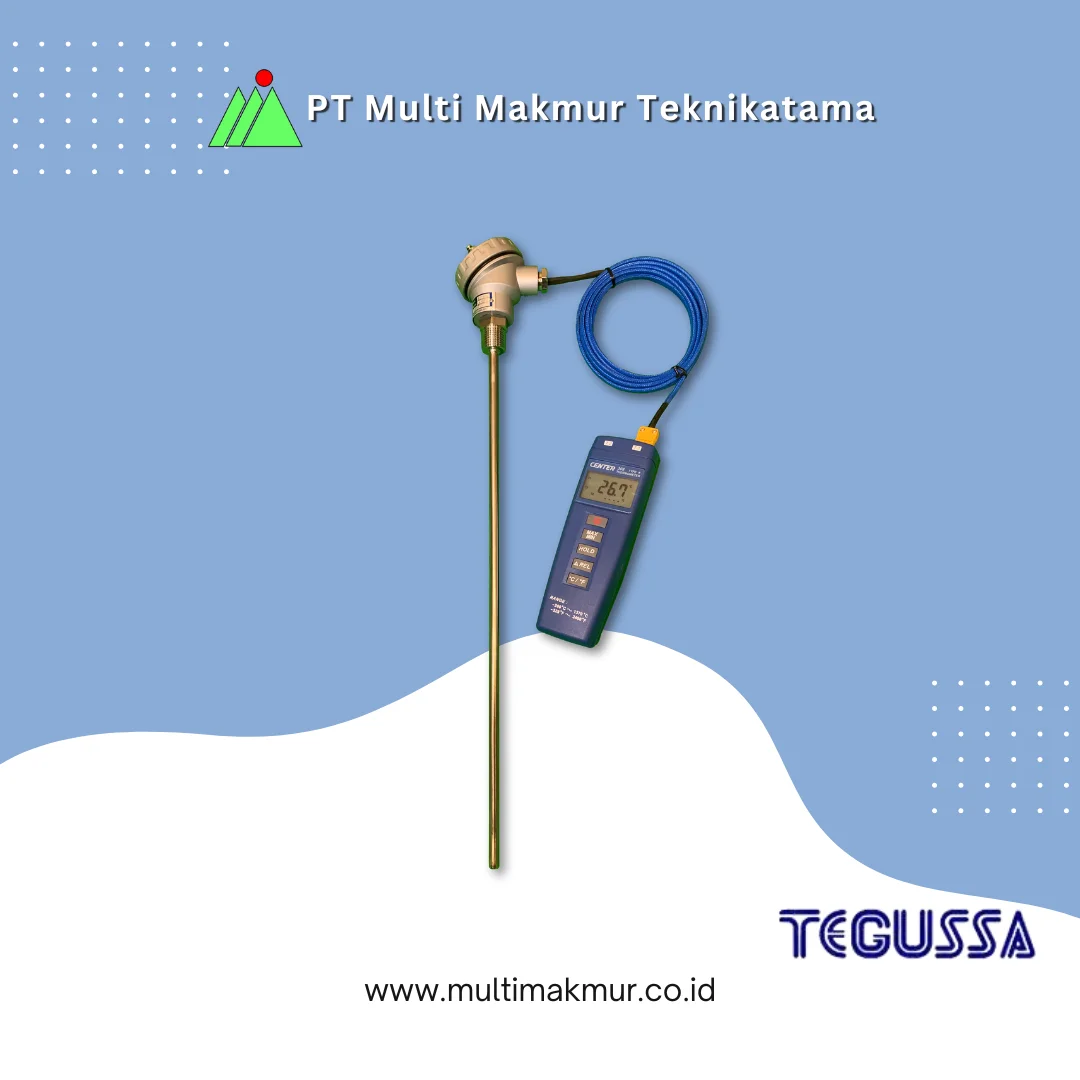

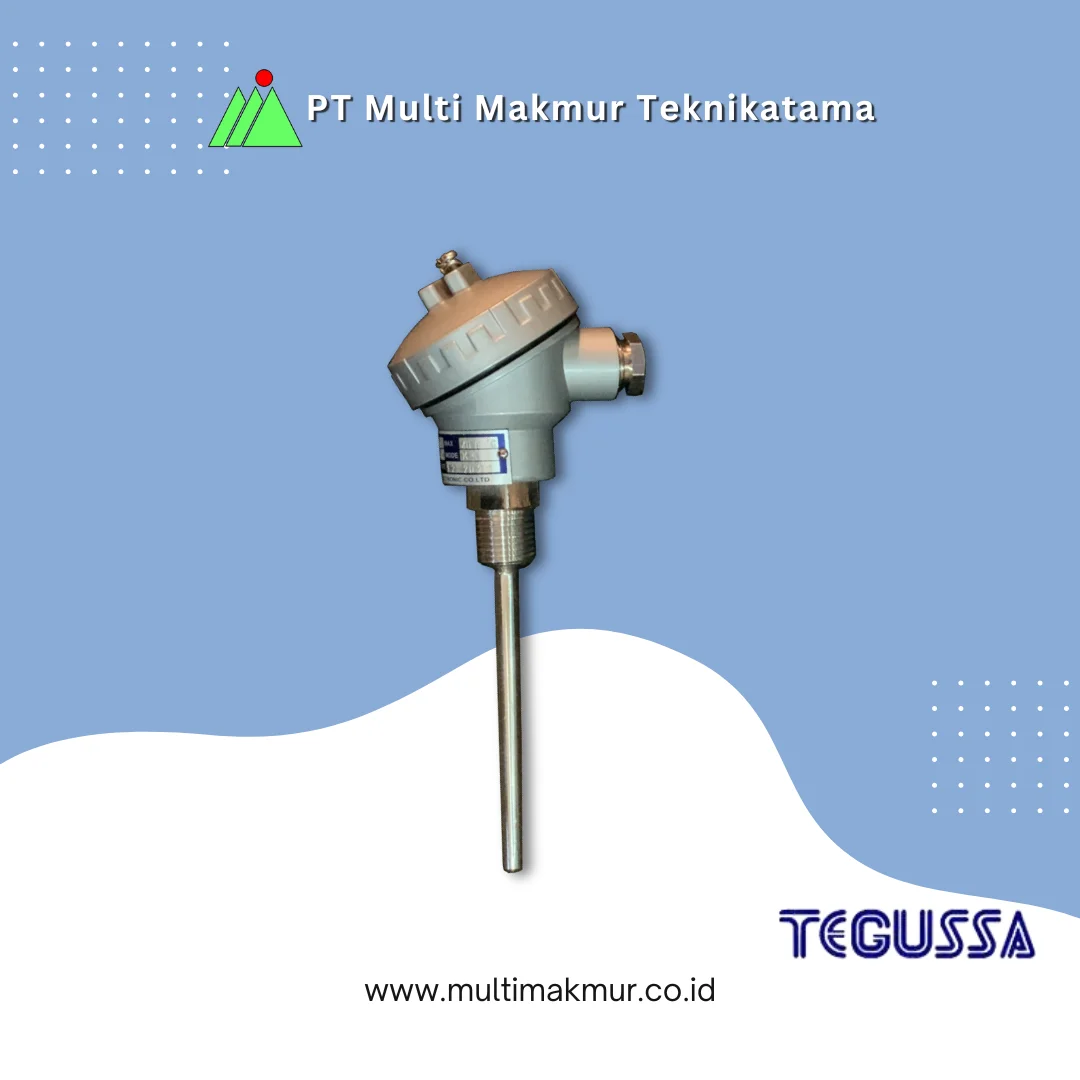

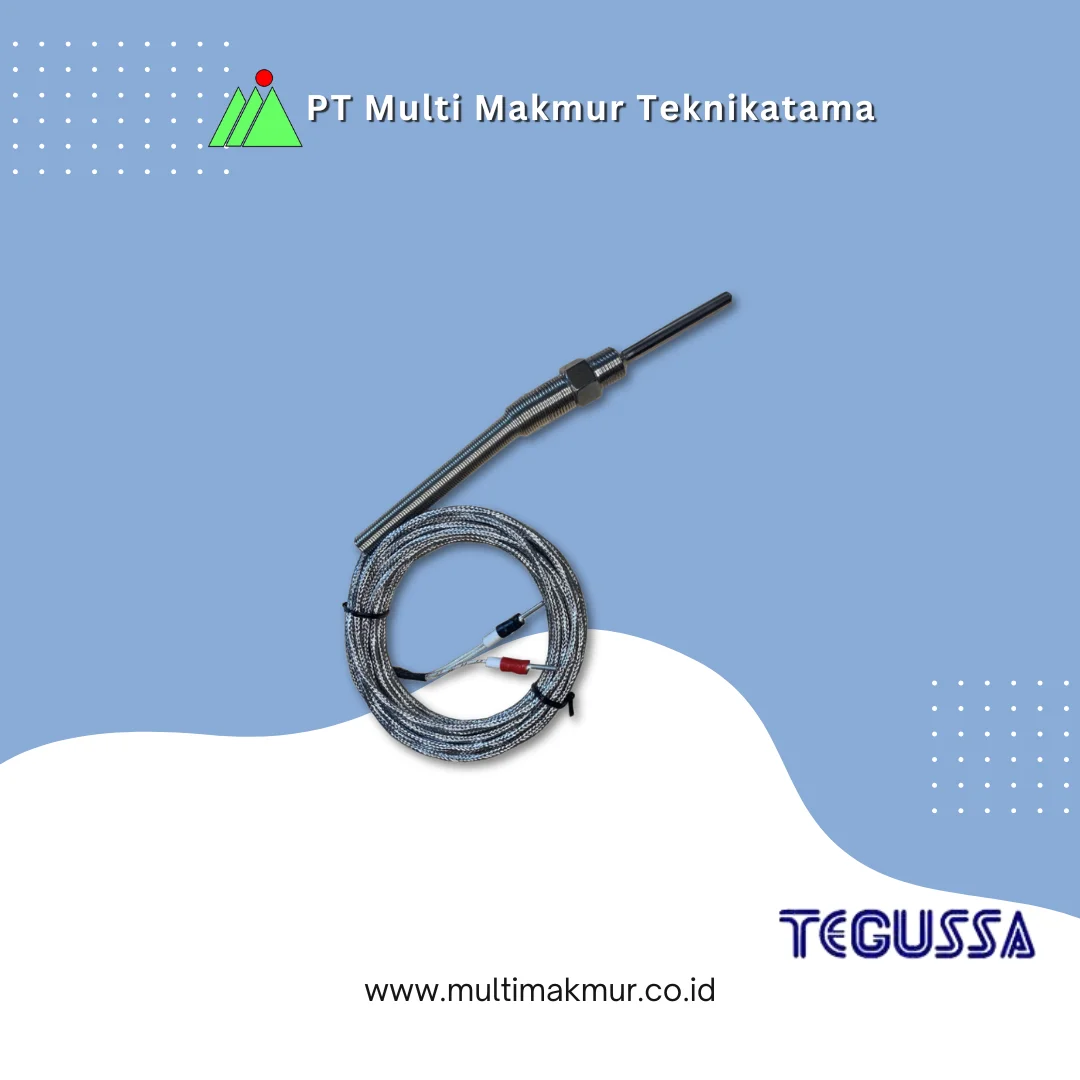

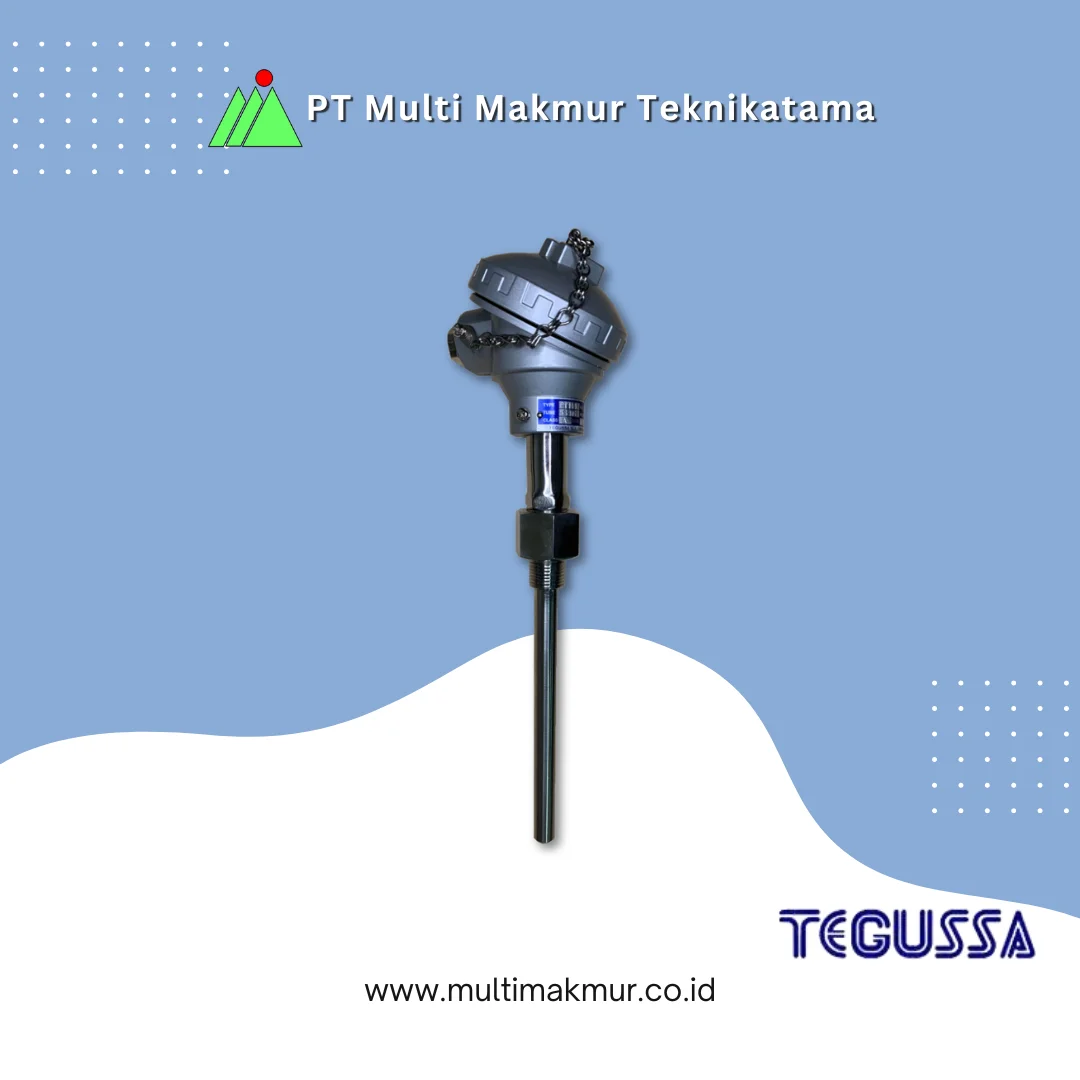

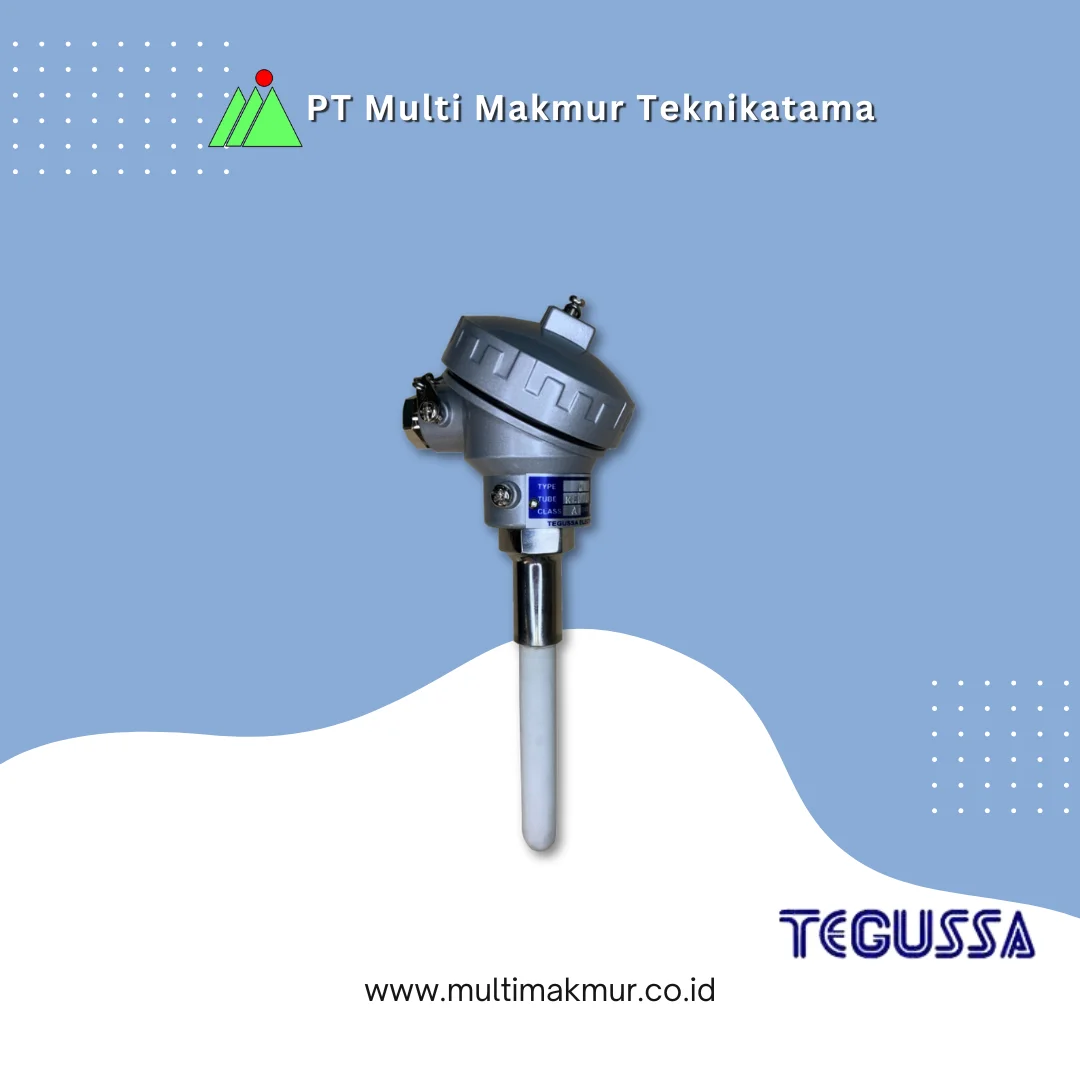

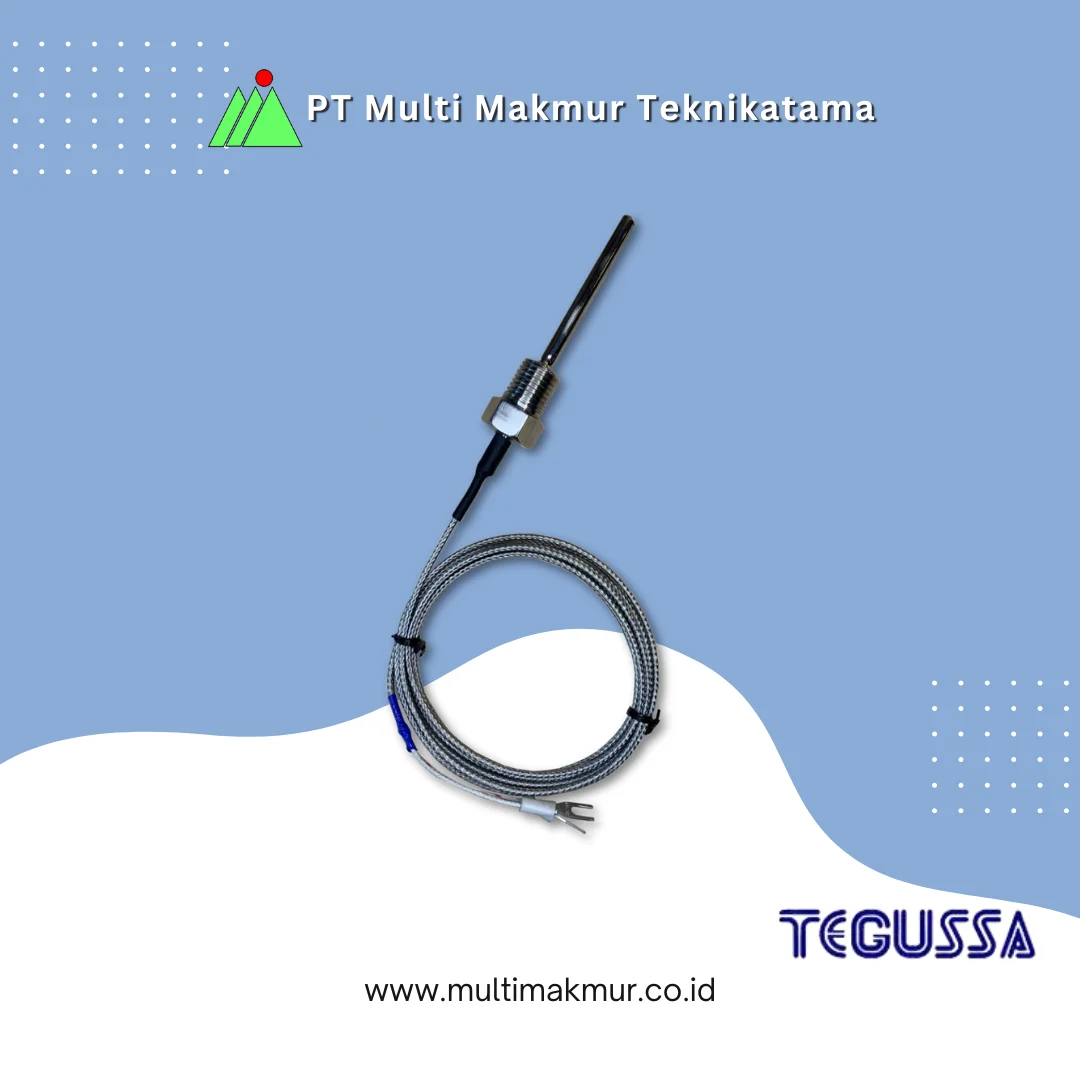

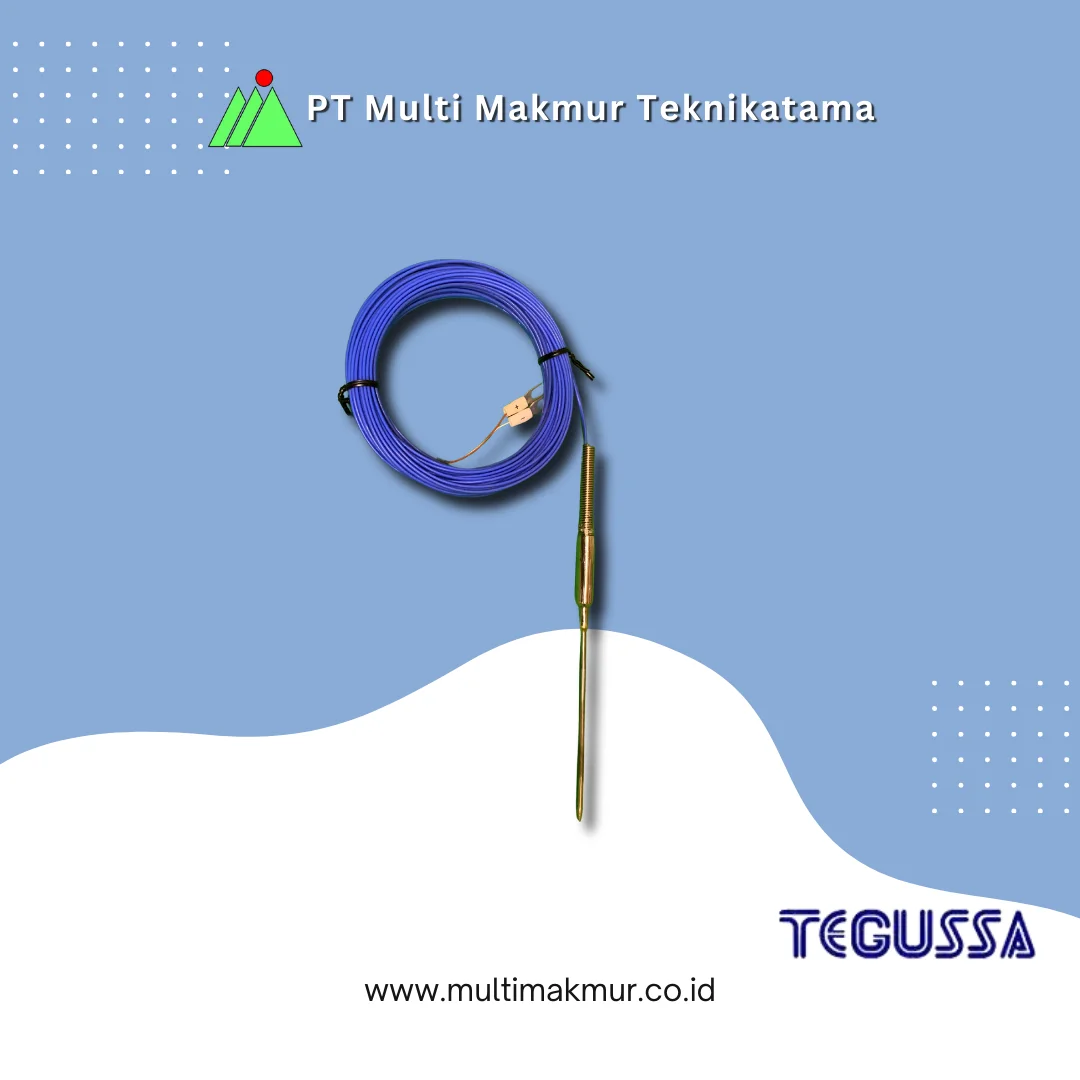

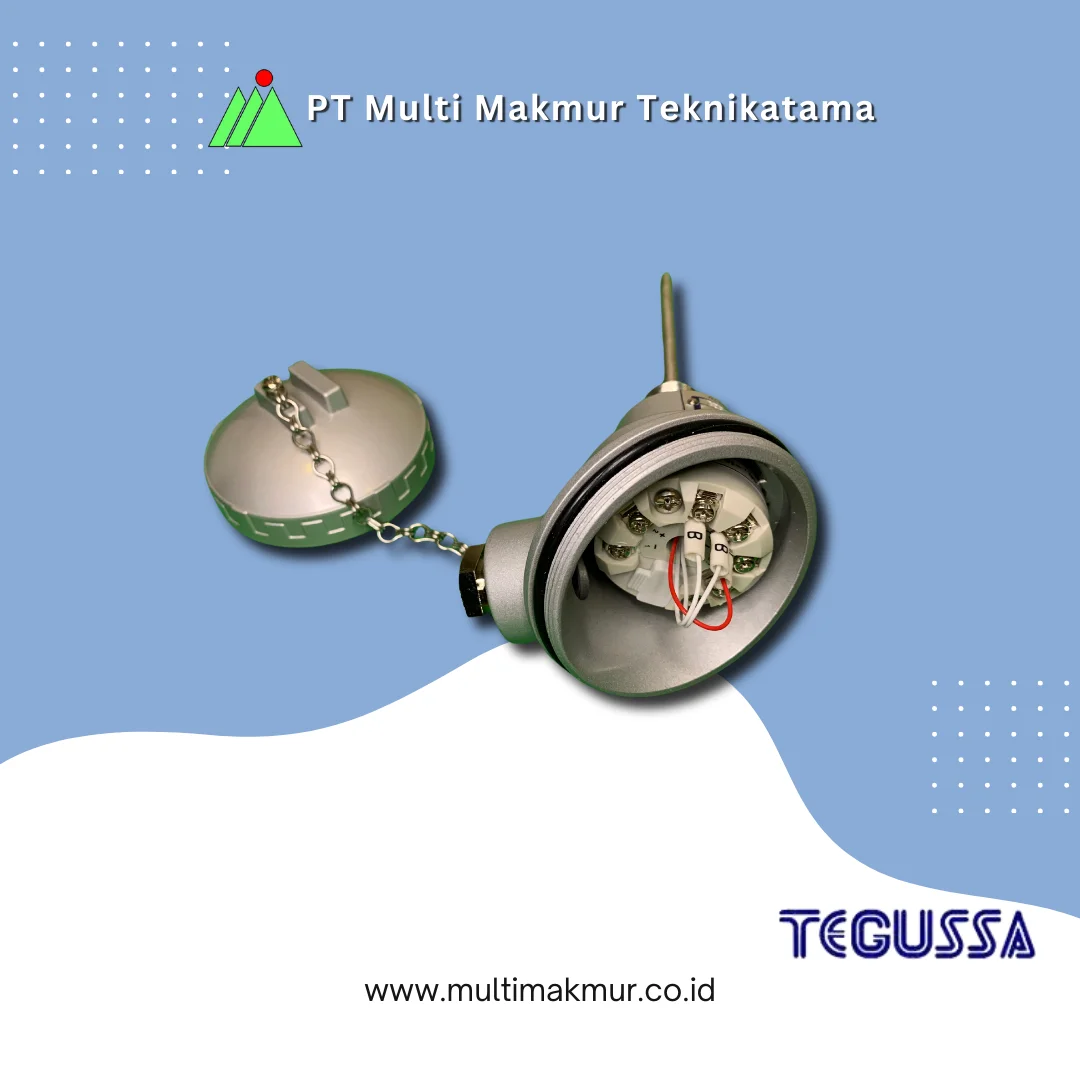

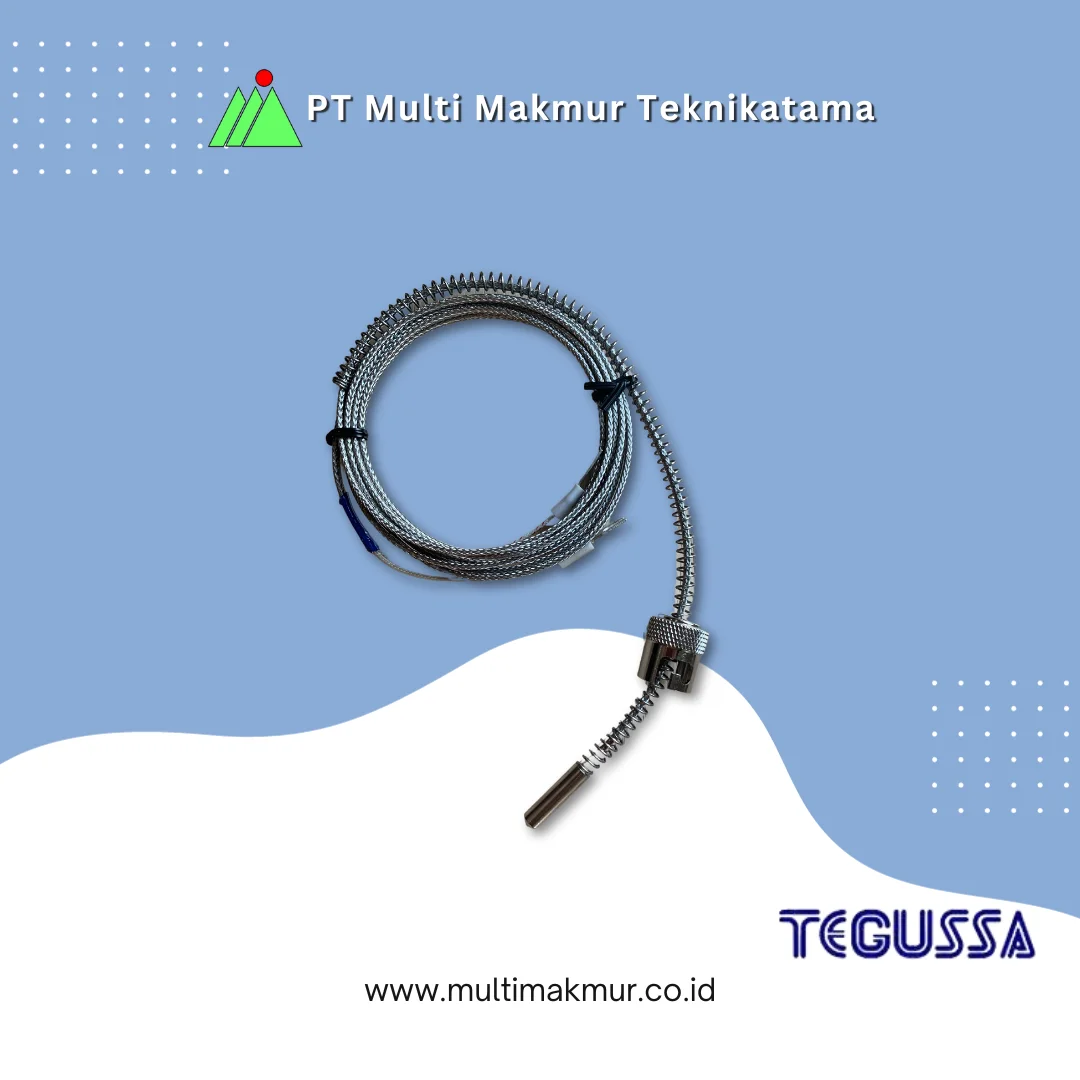

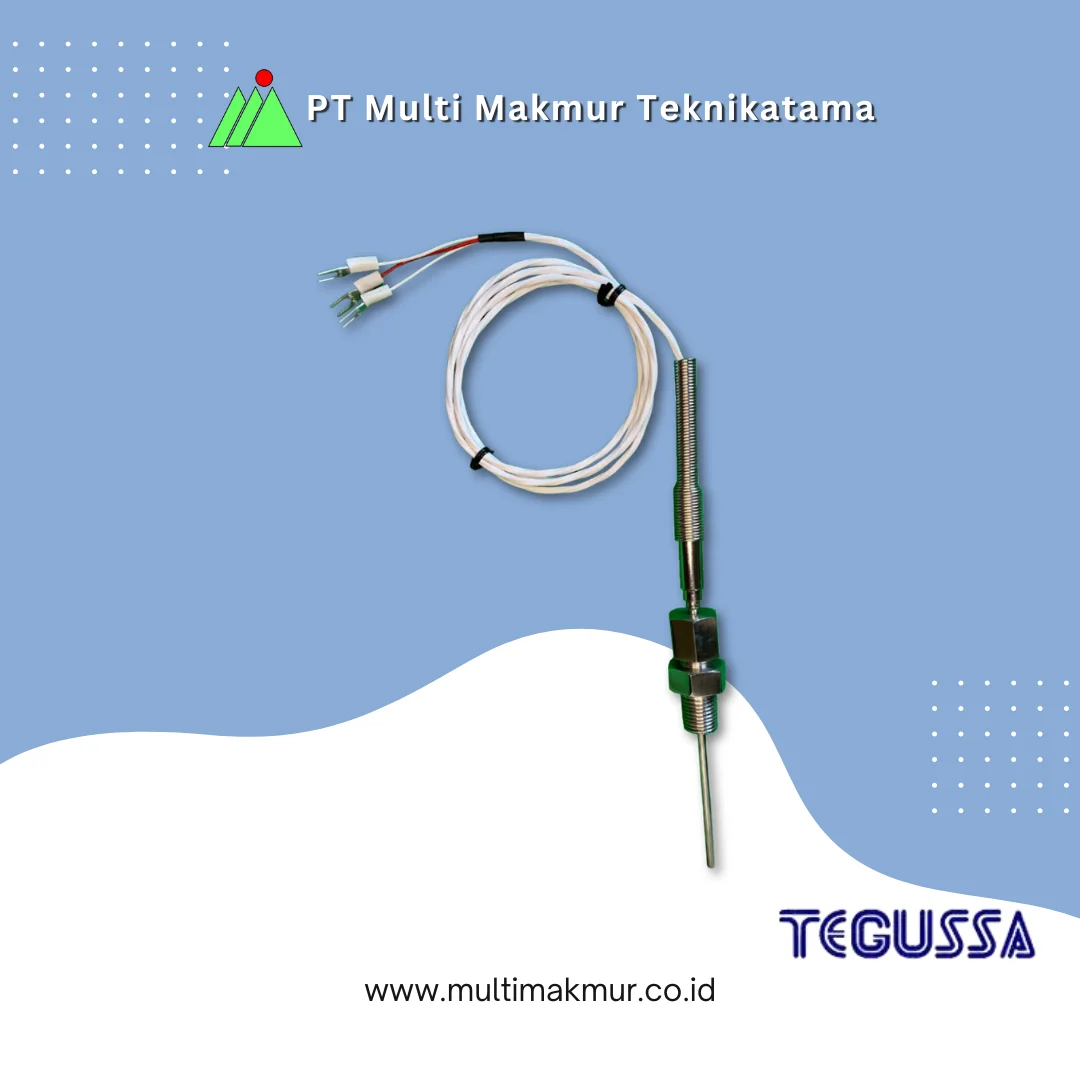

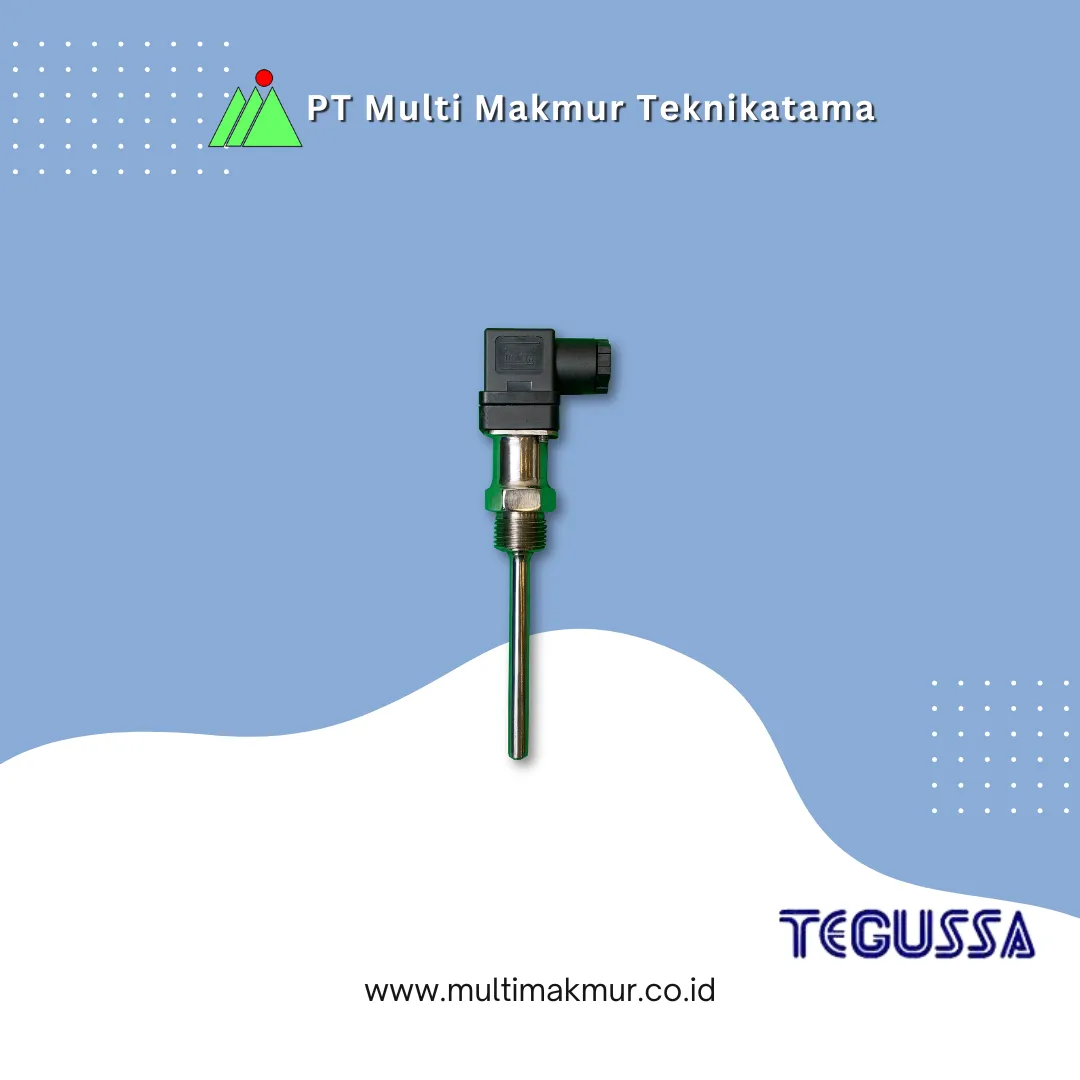

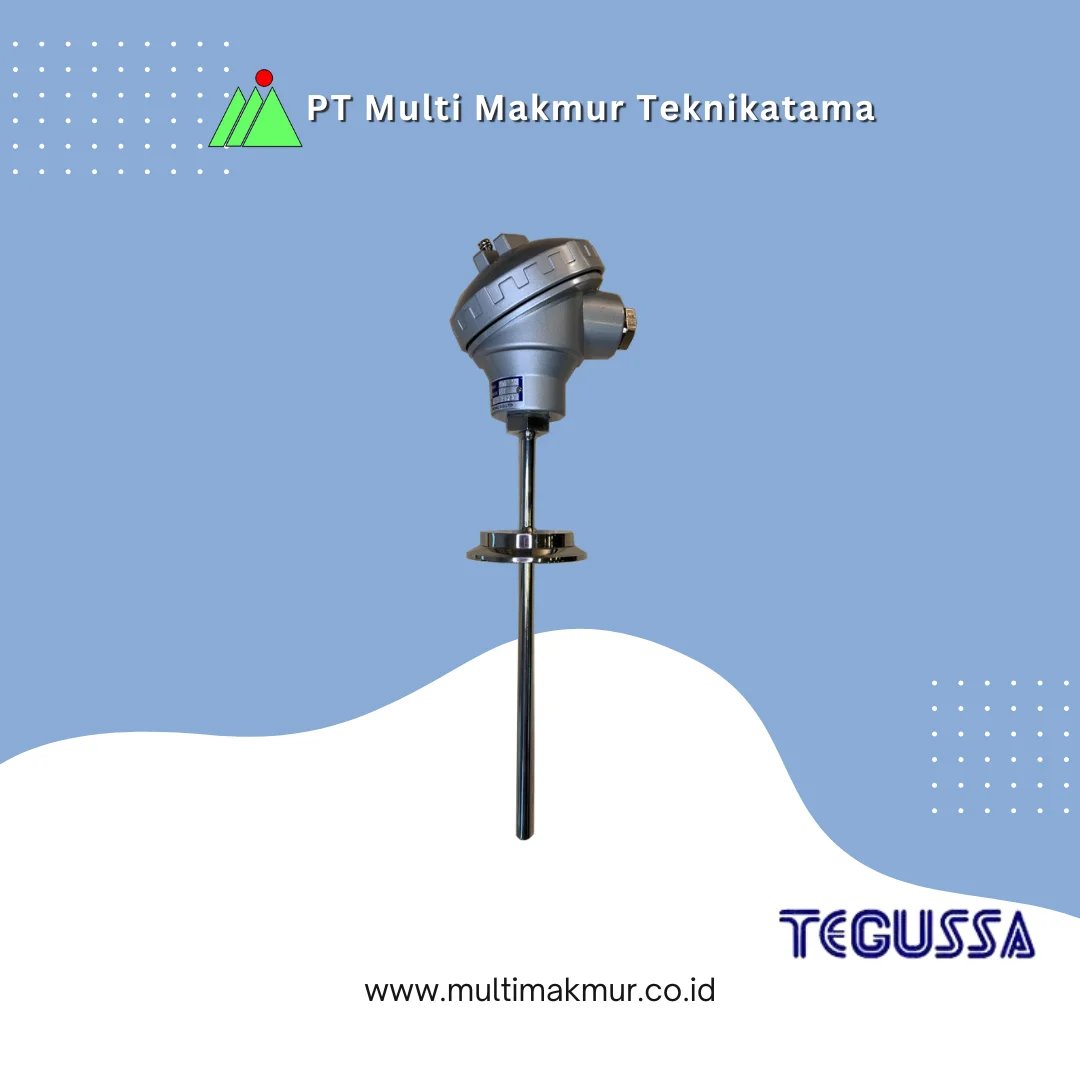

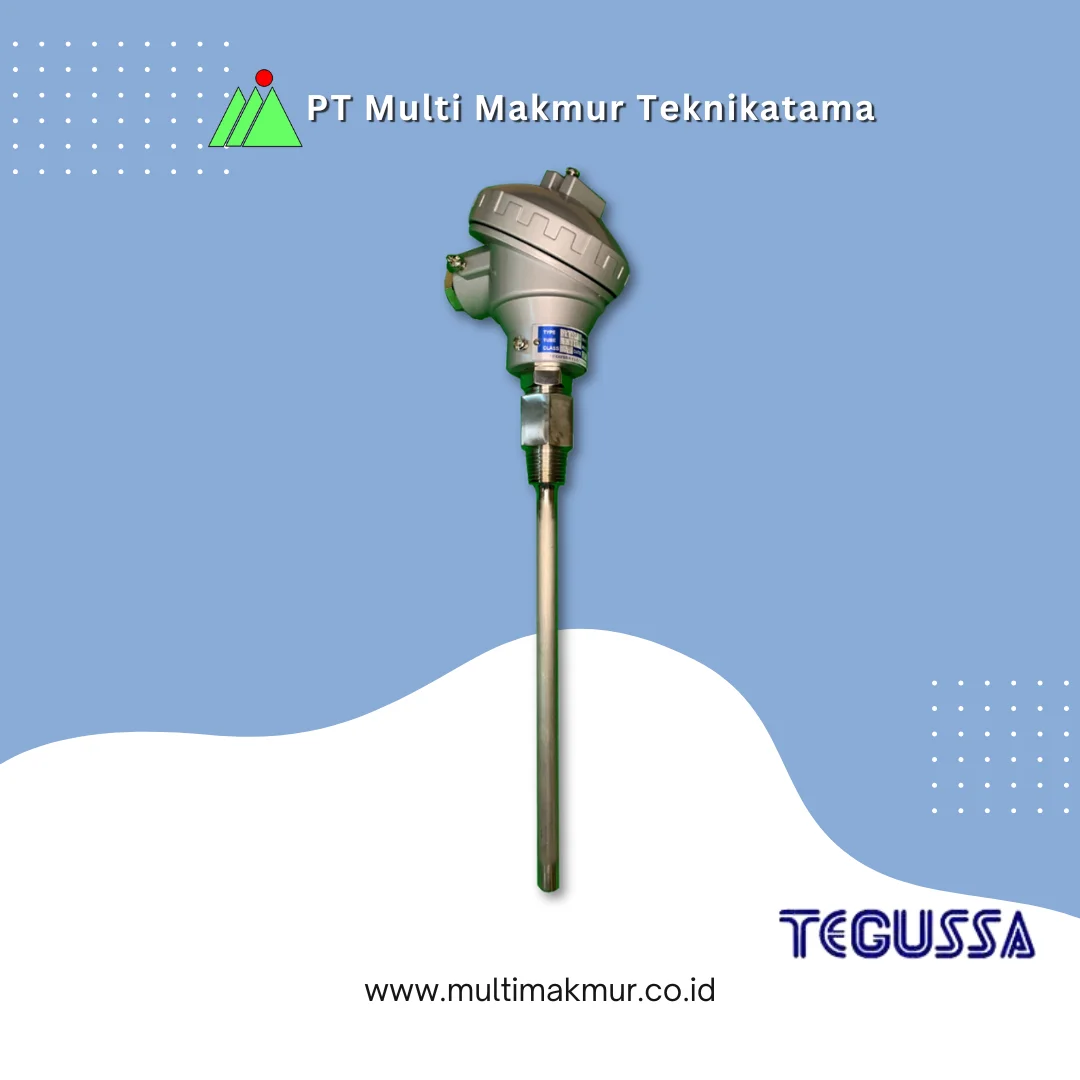

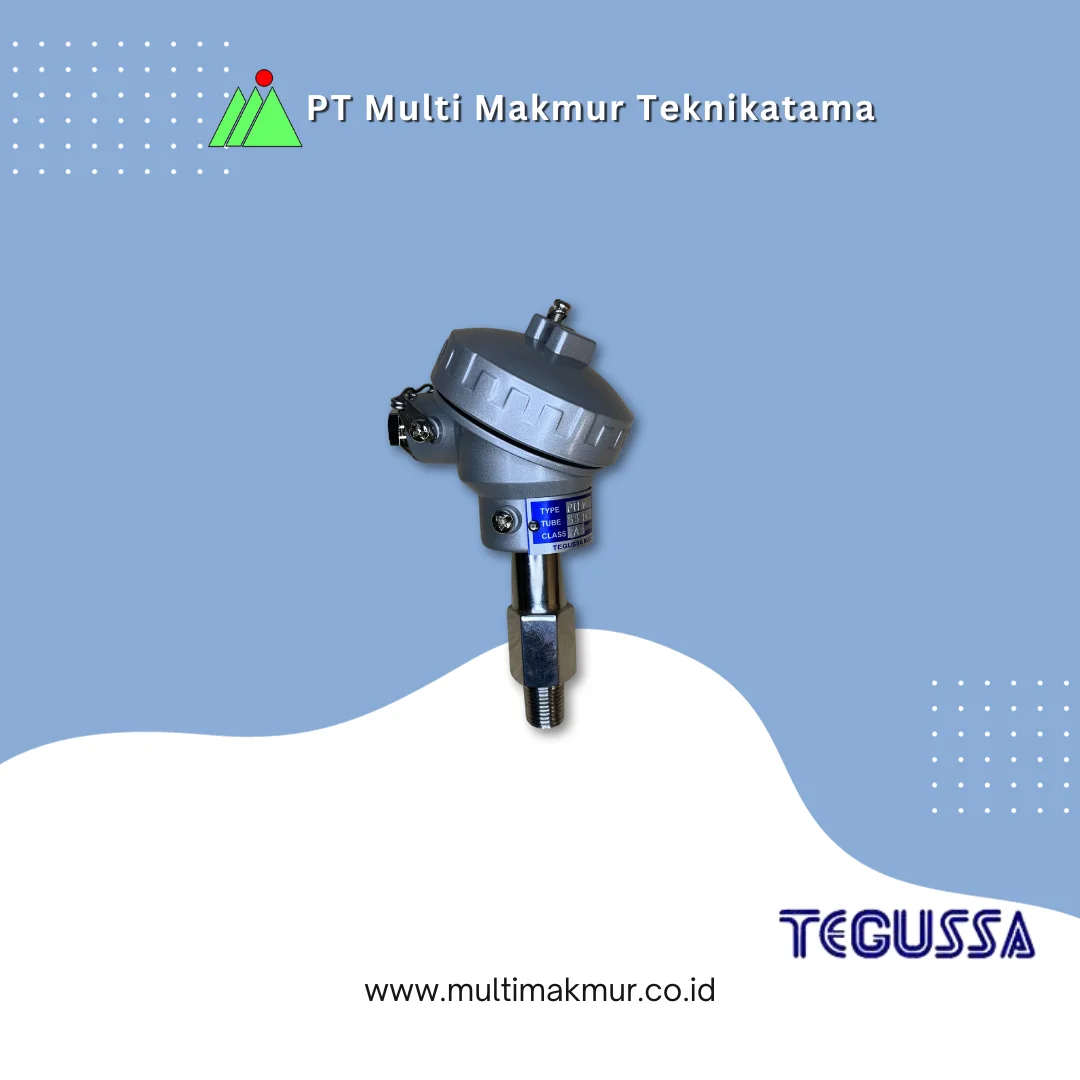

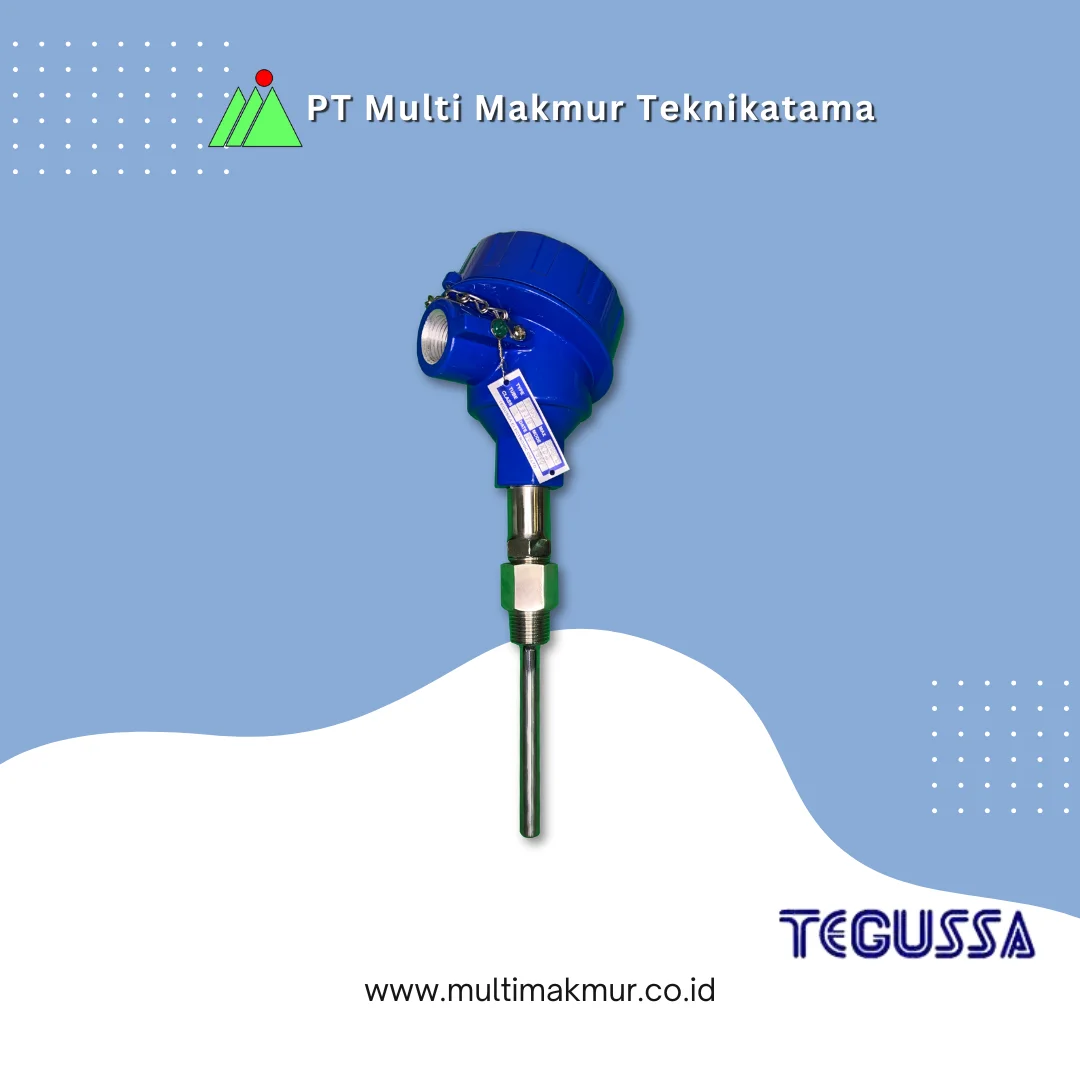

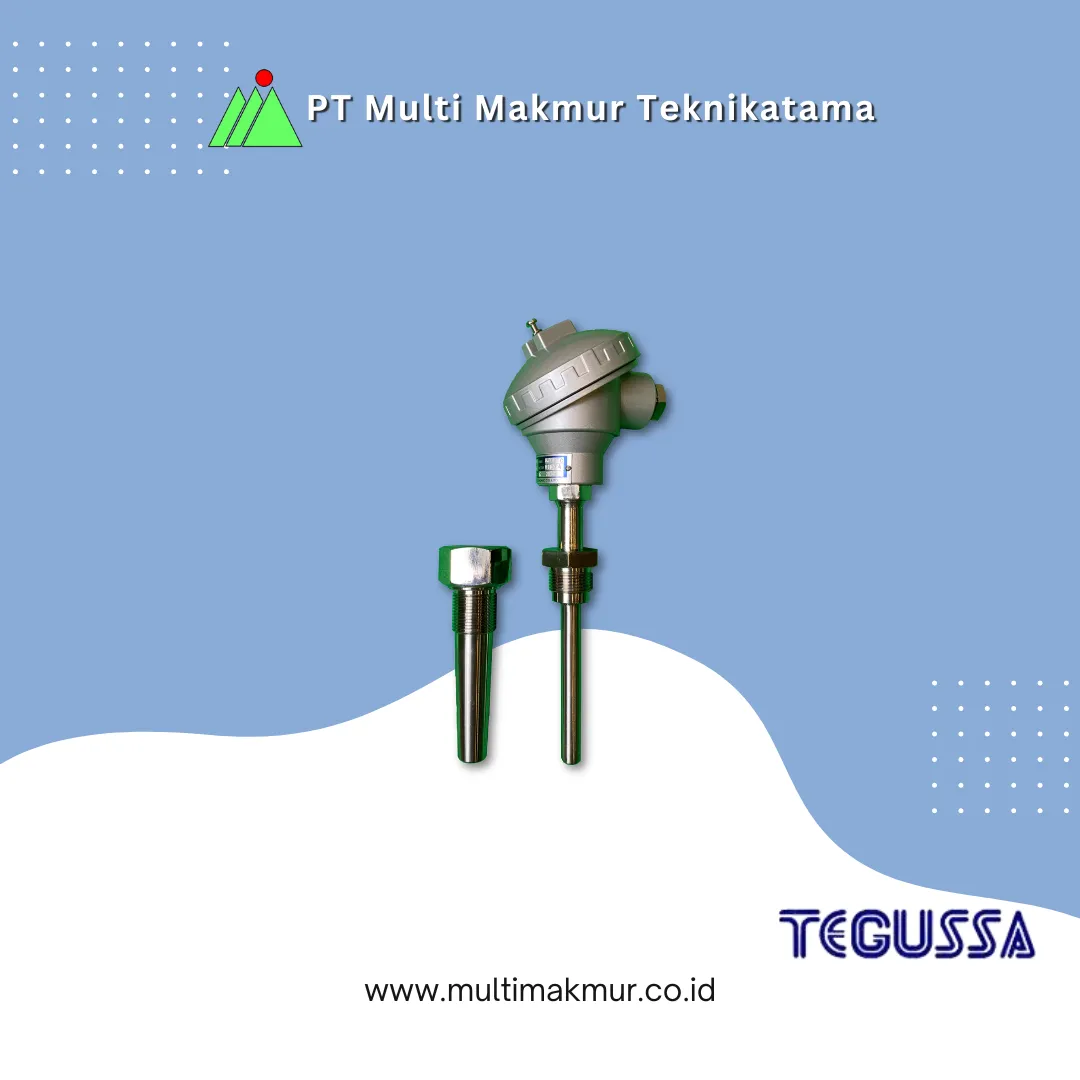

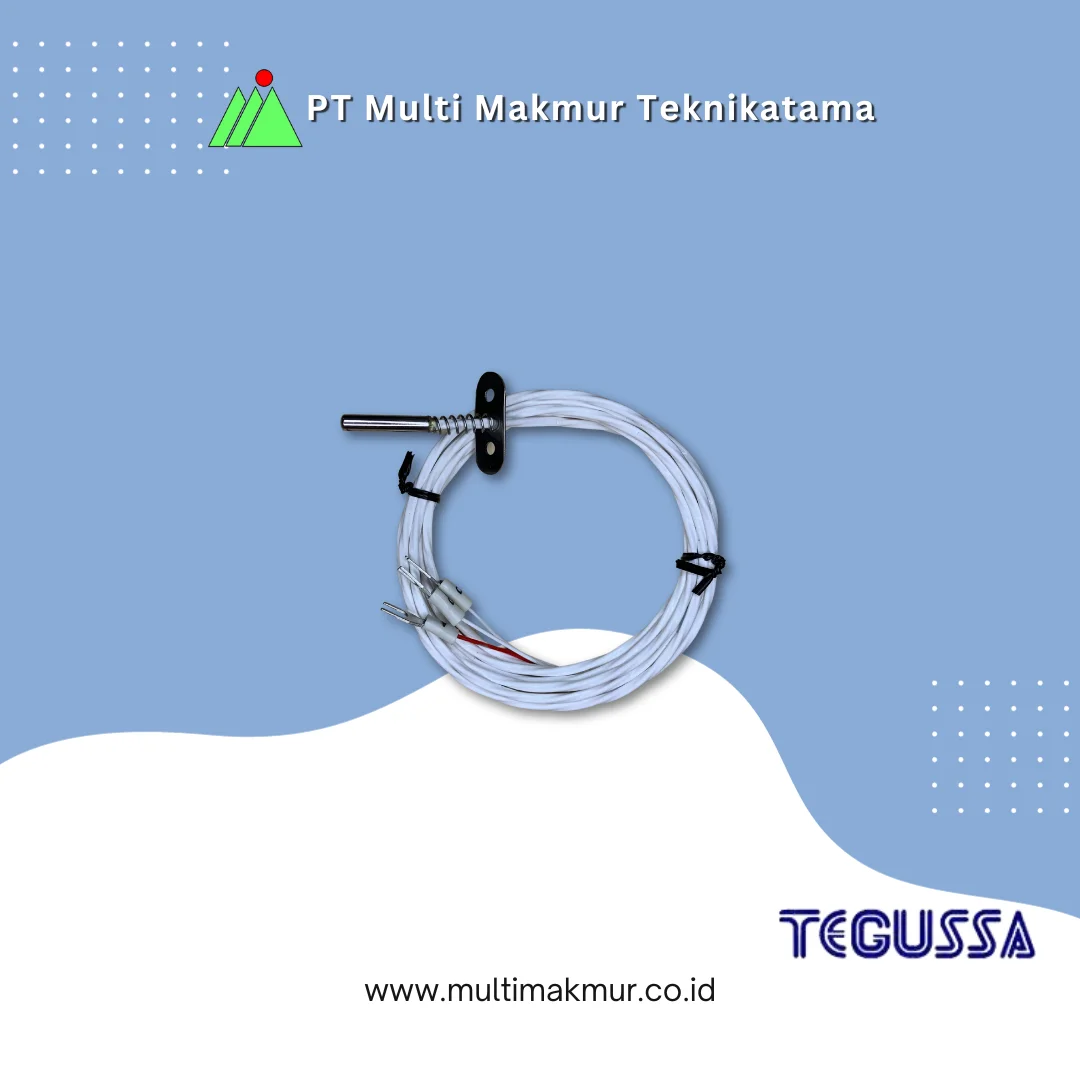

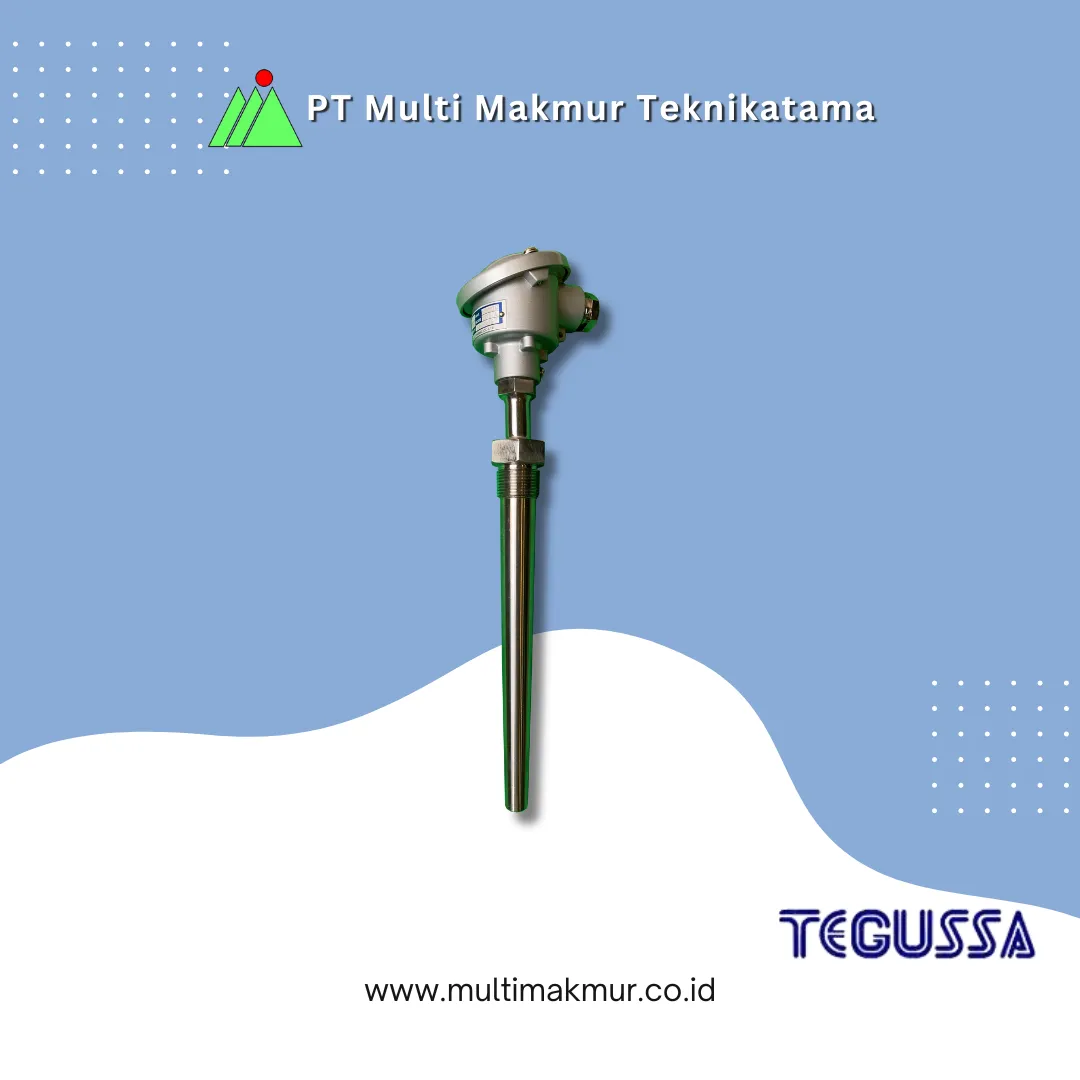

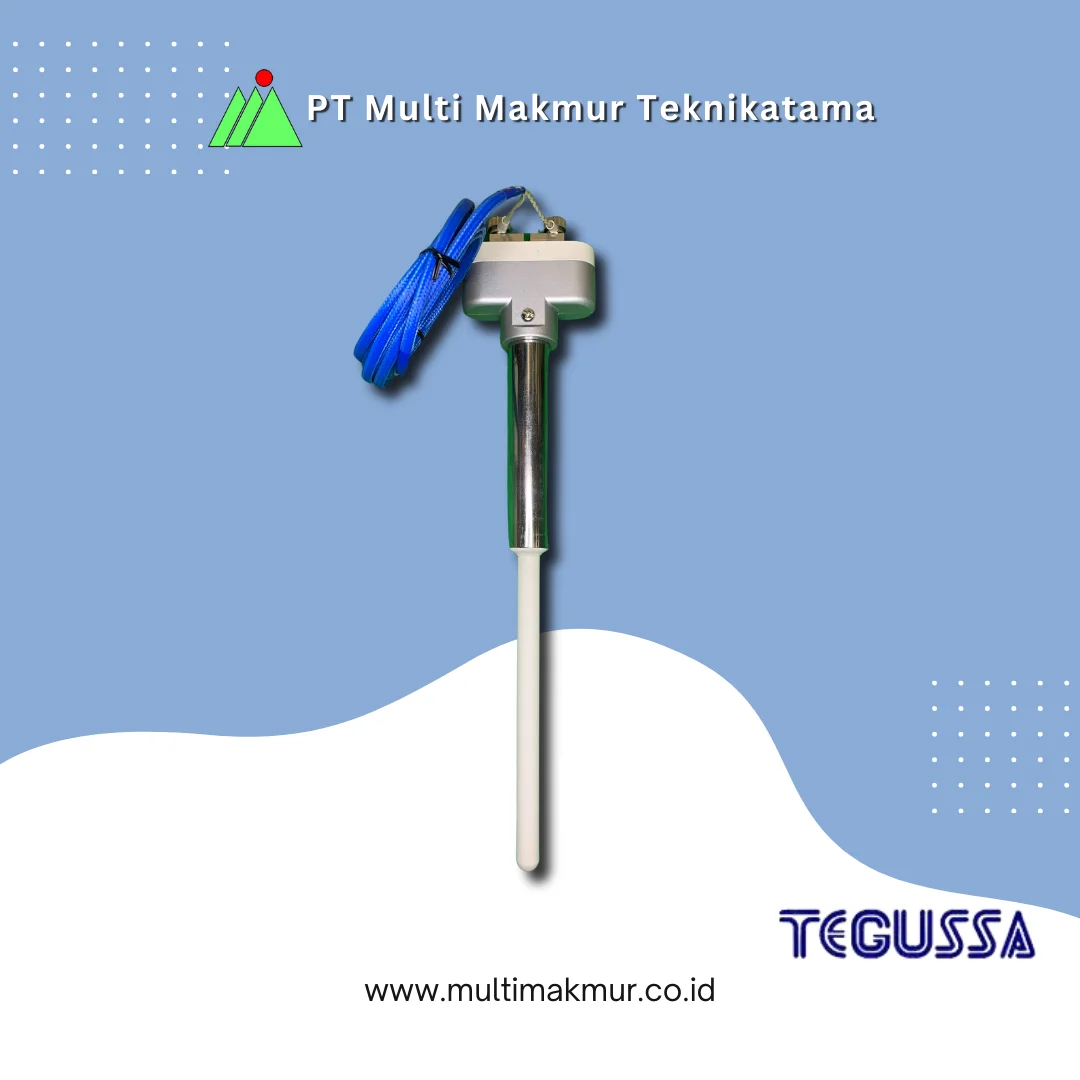

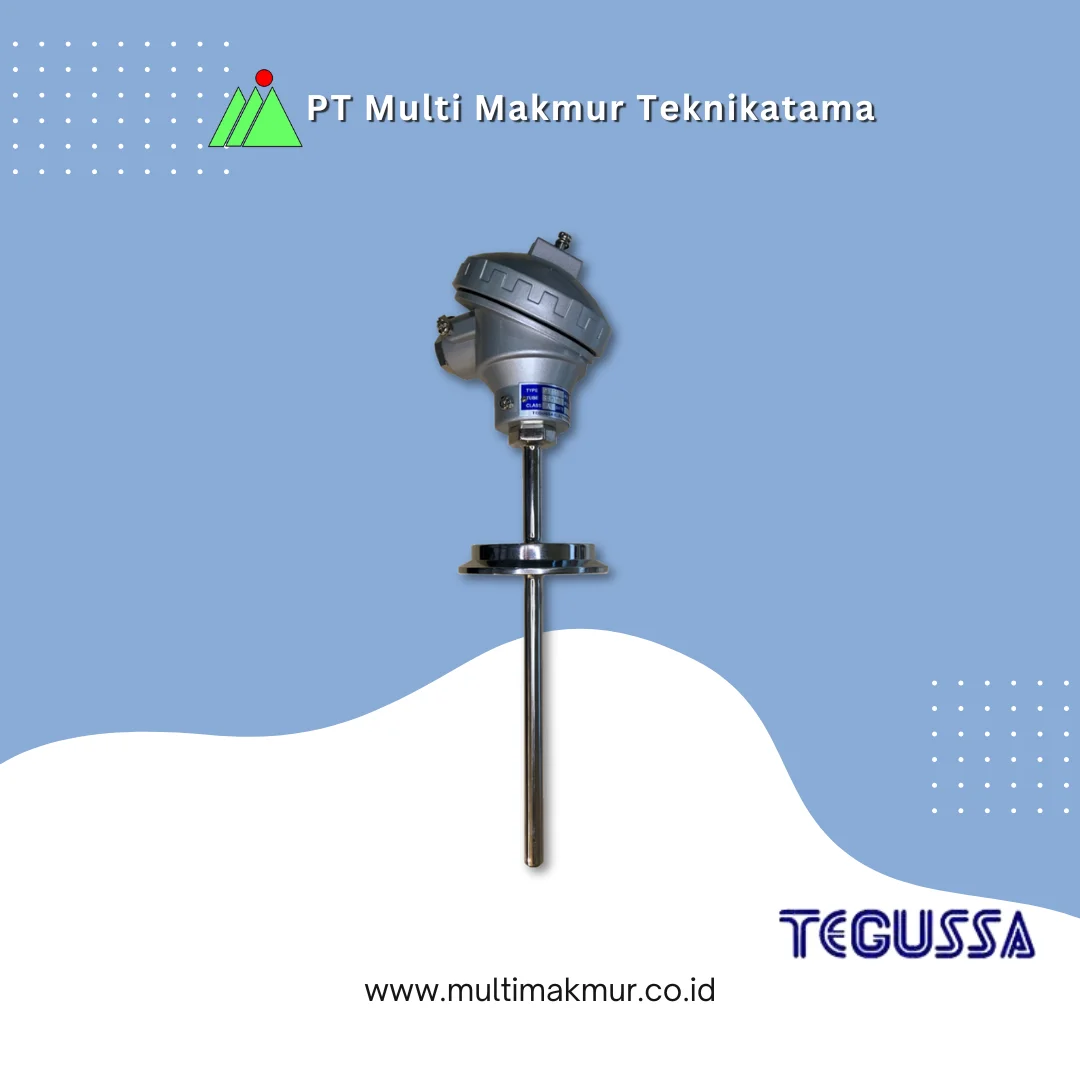

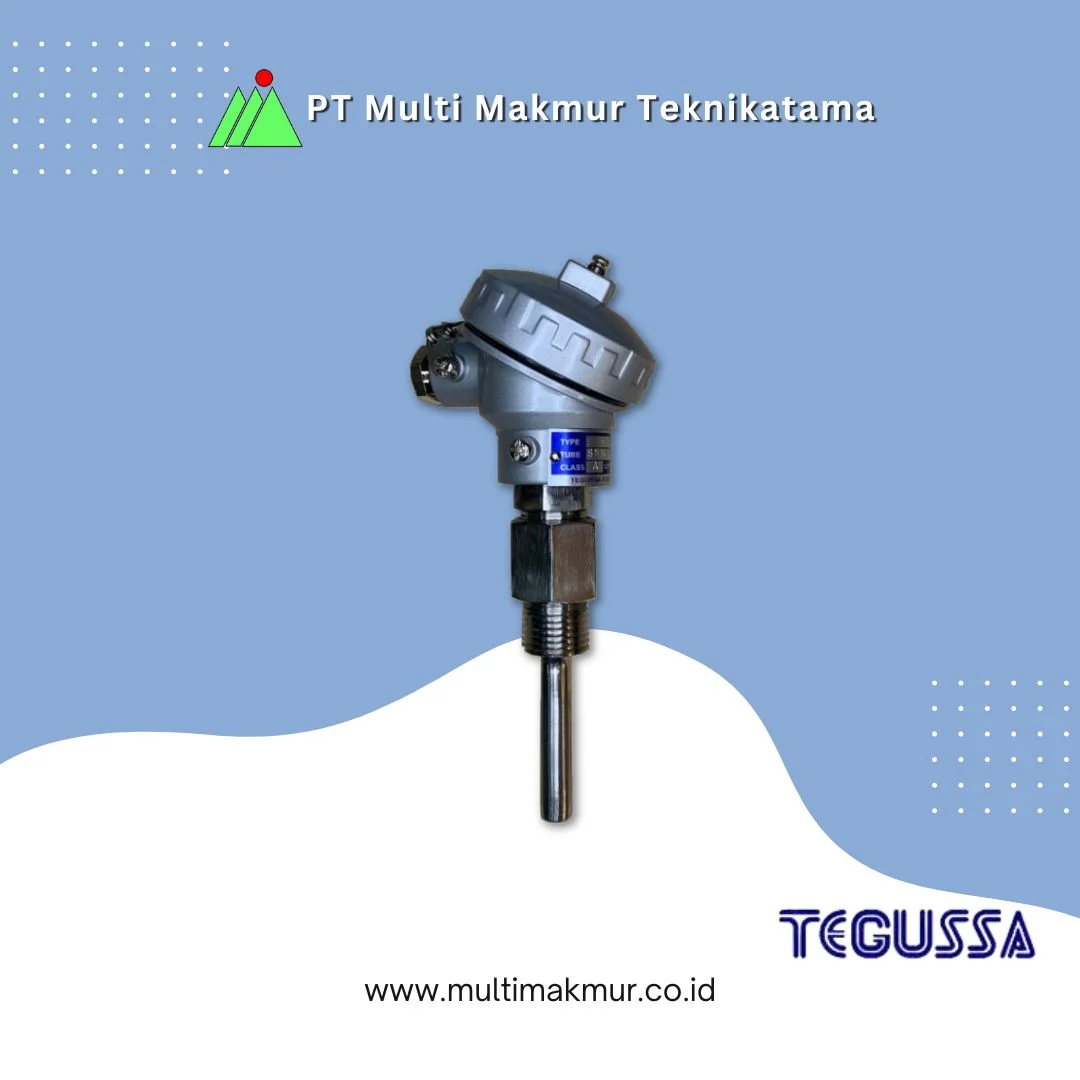

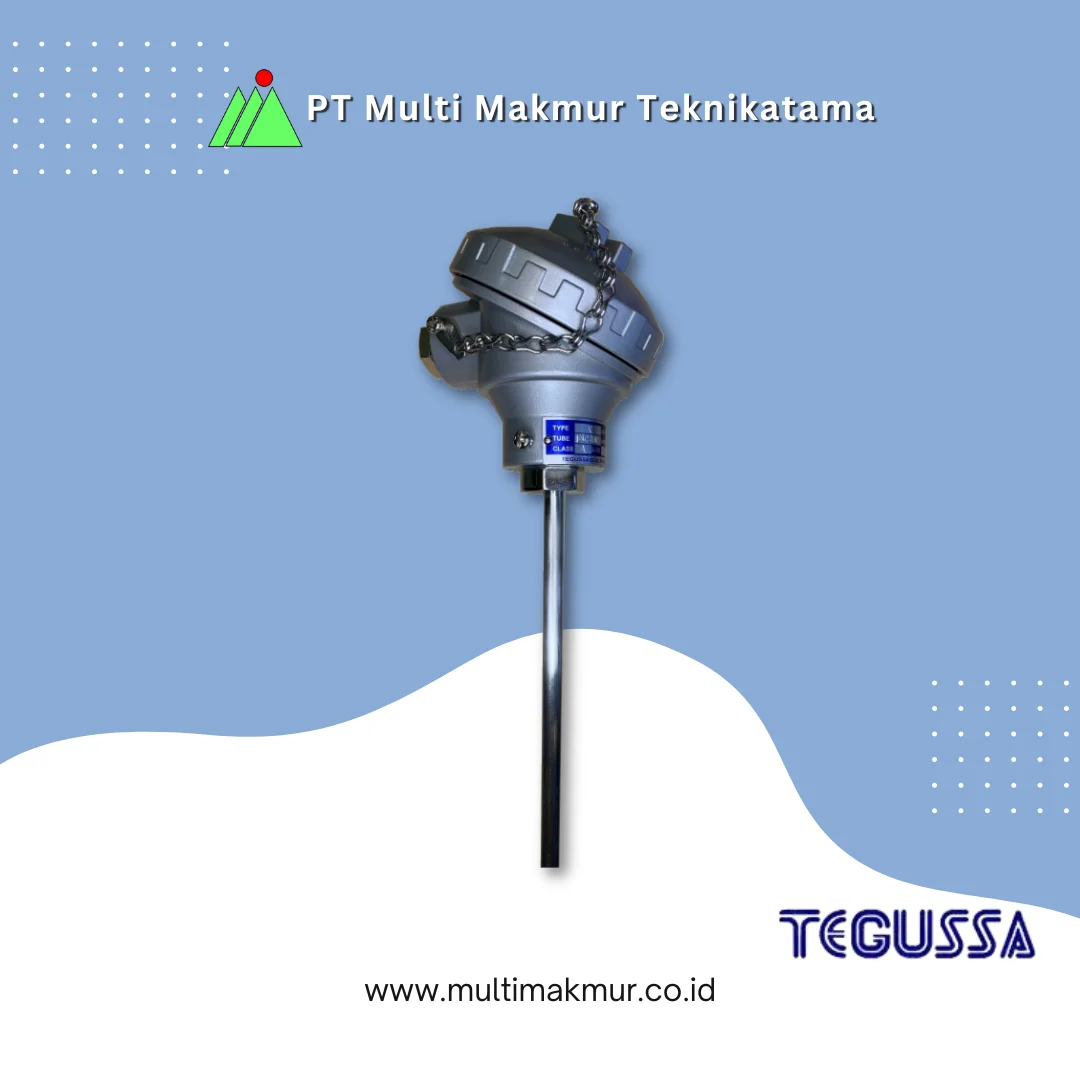

Thermocouple And RTD Sensor

TYPES

I. THERMOCOUPLE

Type	Material		Temperature Range		Application
Type	Leg +	Leg -	Continuous	Short Term	Application
K	Nickel - Chromium	Nickel - Alumunium	0 to +1100	-180 to +1350	Suitable in oxidizing atmosphere, most commonly used of thermocouple
T	Copper	Copper - Nickel	-185 to +300	-250 to +400	Suitable for low temperature applications
J	Iron	Copper - Nickel	+20 to 700	-180 to +750	Usually used in plastic molding industry
N	Nickel - Chromium - Silicon	Nicel - Silicon - Magnesium	0 to +1100	-270 to +1300	Has a stable output on high temperature as high as 1300?C and good oxidation resistance
E	Nickel - Chromium	Copper - Nickel	0 to +800	-40 to +900	Suitable for application in vacuum or oxidizing atmosphere
R	Platinum - 13% Rhodium	Platinum	0 to +1600	-50 to +1700	For very high temperature usage, has a high resistance to oxidation and corrosion
S	Platinum - 10% Rhodium	Platinum	0 to +1550	-50 to +1750	For very high temperature usage, has a high resistance to oxidation and corrosion
N	Platinum - 30% Rhodium	Platinum - 6% Rhodium	+100 to +1600	+100 to +1820	For very high temperature usage, has a high resistance to oxidation and corrosion, usually used in glass industry

II. RESISTANCE BULB (RTD)

RTDs offer several advantages, such as high accuracy, repeatability, and long-term stability. They also have a relatively wide temperature range, typically from -200 deg C to 650 deg C (-328 deg F to 1202 deg F), making them suitable for various applications. RTDs are commonly used in industrial processes, laboratories, HVAC systems, and scientific research where precise and reliable temperature measurements are required.
