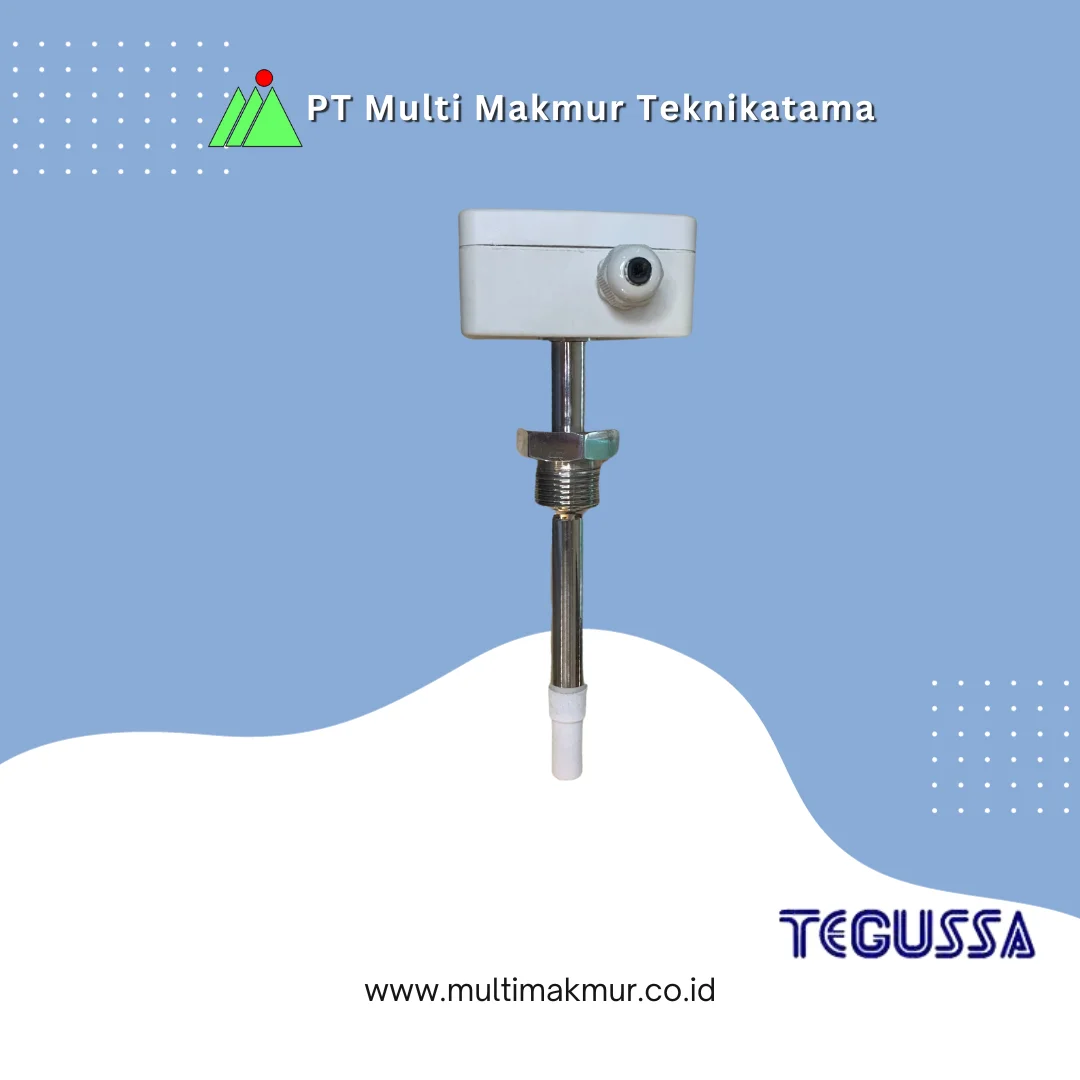

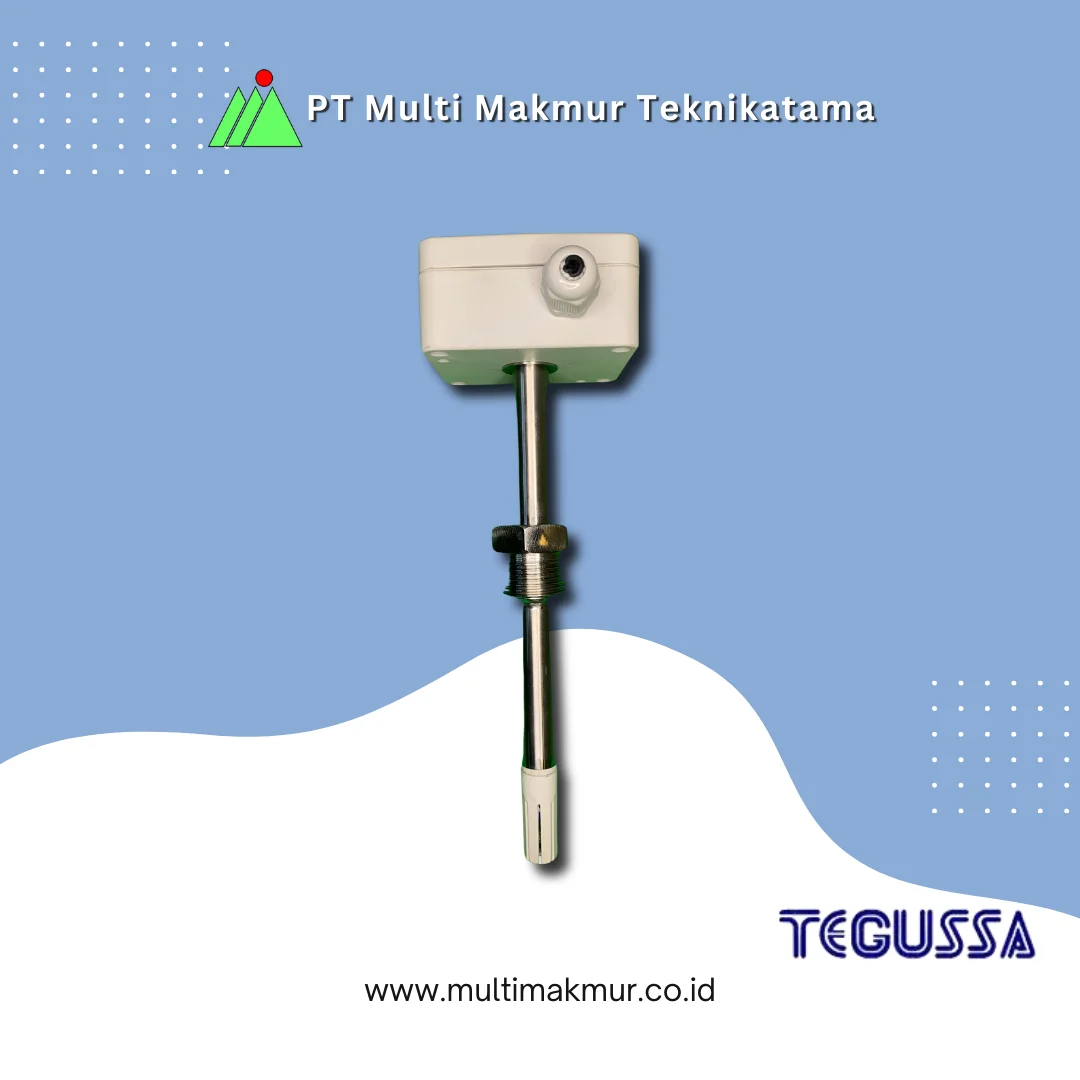

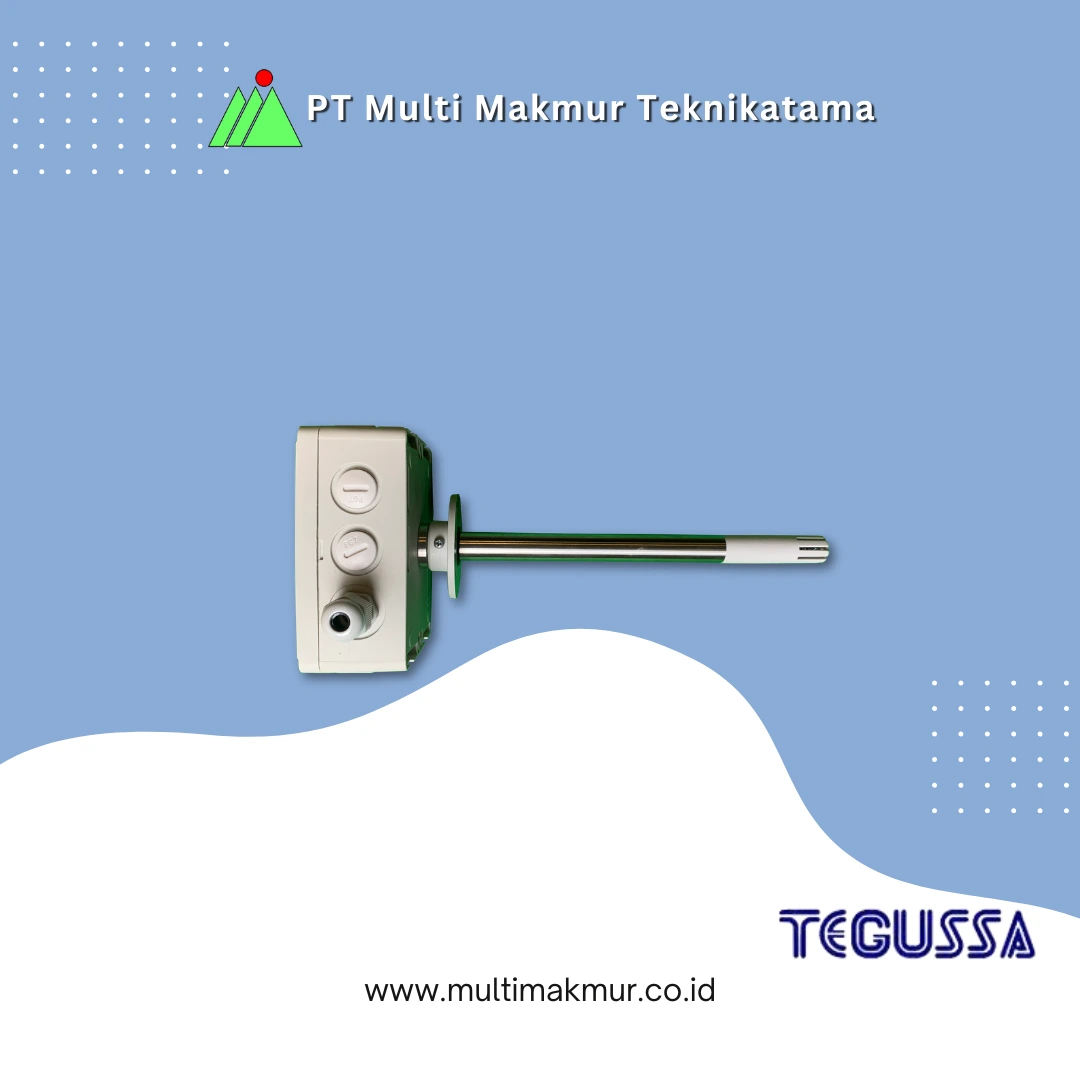

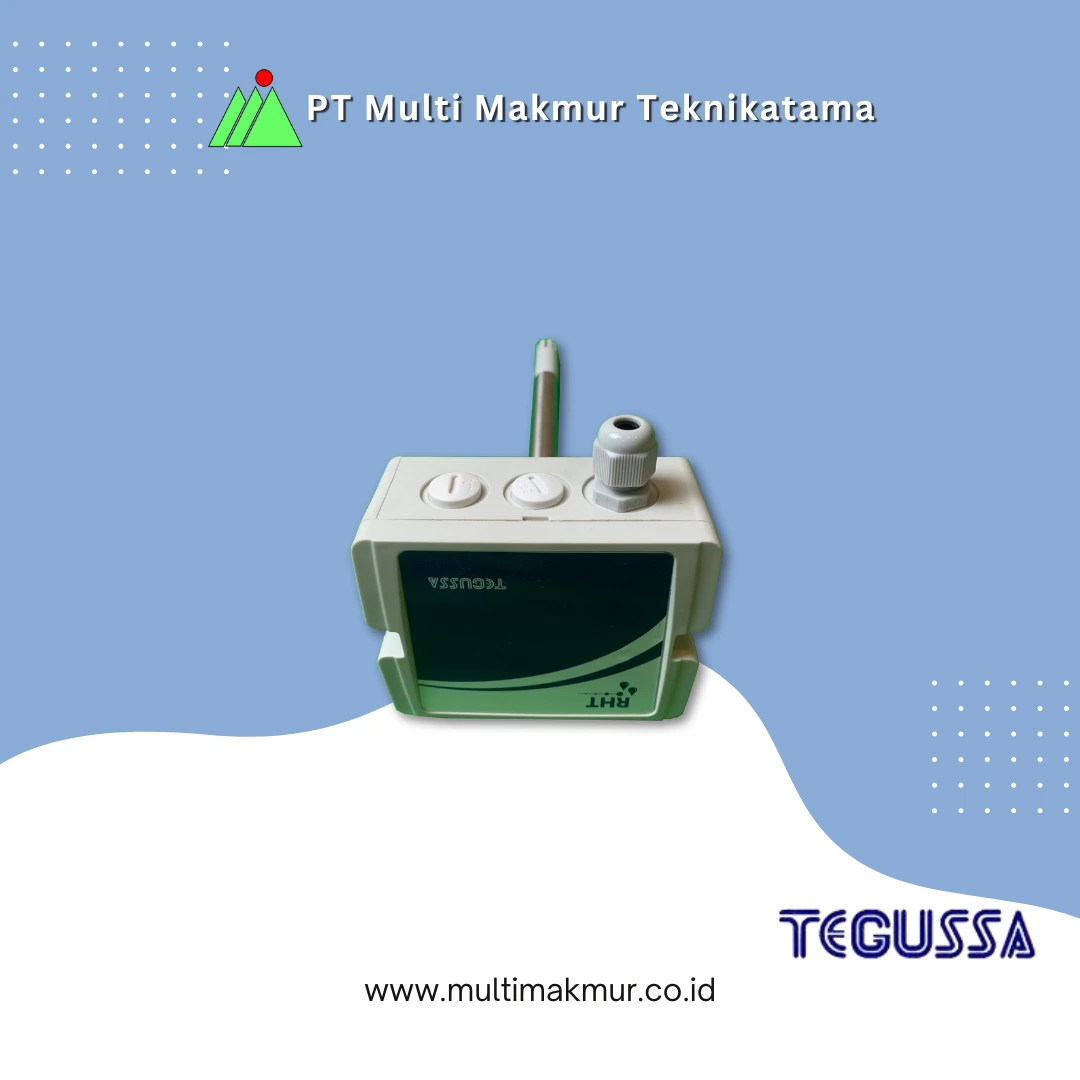

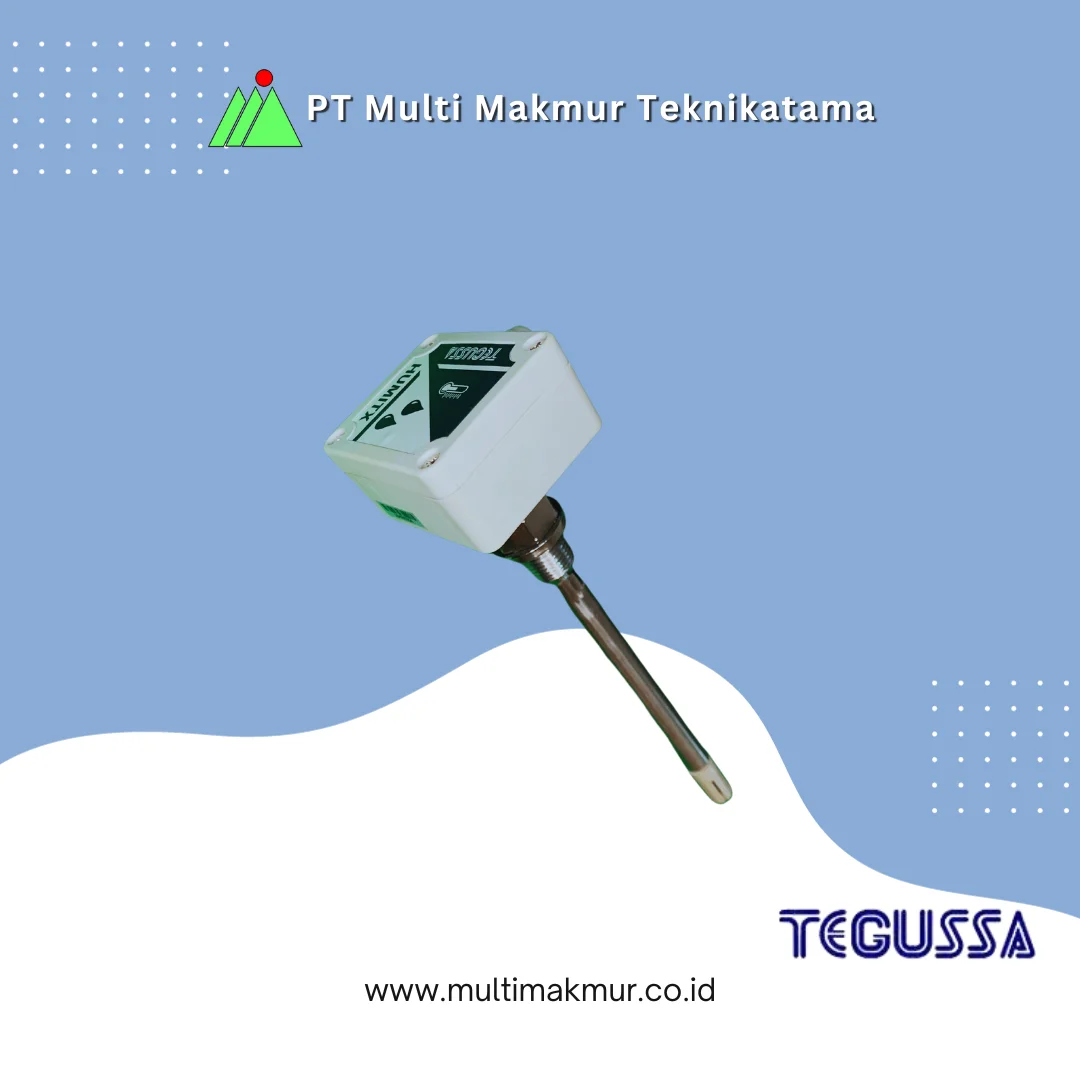

Relative Humidity and Temperature Sensor

Introducing our Humidity and Temperature Sensor, RHT Series, your key to precision climate monitoring. This smart sensor seamlessly combines accuracy and versatility to optimize your environment.

Achieve the ideal conditions effortlessly. Our sensor delivers precise temperature and humidity data, ensuring comfort, productivity, and equipment reliability.

Don't leave your comfort, productivity, or equipment performance to chance. Connect with us today to explore the capabilities of our Humidity and Temperature Sensor, the RHT Series, and take control of your environment. With precision at your fingertips, you can achieve the perfect climate, every time.

Relative Humidity and Temperature Sensor

SPECIFICATIONS

I. HTX-DM

Features	Descriptions
General
Power	from 12 Vdc to 30 Vdc
Output	Two-wire loop powered 4-20 mA or 20-4 mA
Isolation between outputs	Isolated 4-20 mA outputs
Output load (RL)	RL (max. in Ohms) = (Vdc 12) / 0.02, where: Vdc=power voltage in Volts
Protection	Internal protection against reversed voltage wire polarity
Cable Input	PG7 cable gland
Operational Limits	Electronic Module: -10 to +65 °C, 0 to 95%RH
Humidity Transmitter
Output resolution	0.022 mA
Repeatibility	±1%RH
Hysterisis	±1%RH
Non-linearity	<<1%RH
Stability	<1% RH per year
Range	0-100%RH
Response Time	4s in fairly still air
Temperature Transmitter
Output resolution	0.006 mA
Repeatibility	±0.1°C
Range	0 - 100 °C (for customized range, please consult)

	Operating Measurement Range: 0 – 100 °C (for customized range, please consult)
Response time	Up to 30s in fairly still air
For customized process connection on the probe, please consult with us.

II. HTX-WM

Features	Descriptions
General
Power	from 12 Vdc to 30 Vdc
Output	Two-wire loop powered 4-20 mA or 20-4 mA
Isolation between outputs	Isolated 4-20 mA outputs
Output load (RL)	RL (max. in Ohms) = (Vdc 12) / 0.02, where: Vdc=power voltage in Volts
Protection	Internal protection against reversed voltage wire polarity
Cable Input	PG7 cable gland
Operational Limits	Electronic Module: -10 to +65 °C, 0 to 95%RH
Humidity Transmitter
Output resolution	0.022 mA
Repeatibility	±1%RH
Hysterisis	±1%RH
Non-linearity	<<1%RH
Stability	<1% RH per year
Range	0-100%RH
Response Time	4s in fairly still air
Temperature Transmitter
Output resolution	0.006 mA
Repeatibility	±0.1°C
Range	0 - 100 °C (for customized range, please consult)

	Operating Measurement Range: 0 – 60 °C (for customized range, please consult)
Response time	Up to 30s in fairly still air

III. CUSTOMIZATION PRODUCTS
